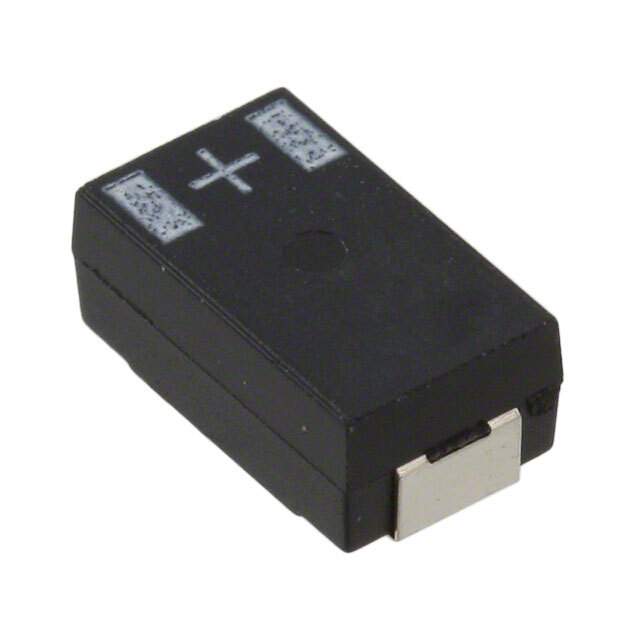

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel
Status Obsolete
Type Polymer
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 2V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at High Frequency 3.5A at 100kHz
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.114" (2.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1127906-2SW330M
Manufacturer Homepage www.rubycon.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SW330M CAD Model

Description

The Rubycon 541037 capacitor is a polymer type capacitor with a capacitance of 330μF and a voltage rating of 2V.

  • Capacitance: 330μF
  • Voltage rating: 2V
  • Tolerance: ±20%
  • ESR: 9mOhm
  • Application: general purpose applications
  • Status: obsolete
  • Surface mount land size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.114" (2.90mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple current: 3.5A @ 100kHz
  • Supply and demand status: balanced
