Products specifications

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 300% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 061179-PC817X4NSZ0F
Family Name PC817X4NSZ0F
Introduction Date February 11, 2011
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC817X4NSZ0F CAD Model

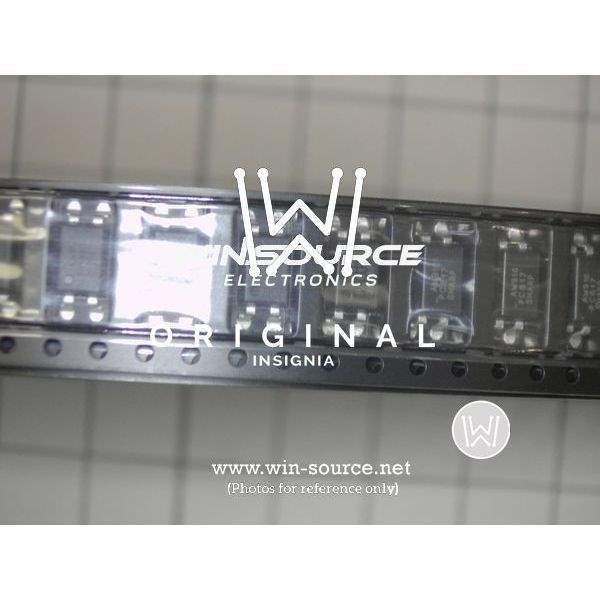

Description

The PC817X4NSZ0F is a single-channel optocoupler manufactured by Sharp Microelectronics. It consists of a gallium arsenide (GaAs) infrared emitting diode that is optically coupled to a silicon phototransistor. This design provides a high isolation voltage and current transfer ratio (CTR), making it suitable for applications where electrical isolation and signal transfer are required.

Applications:

  • SMPS (Switched-Mode Power Supplies): Provides feedback isolation between the primary and secondary sides, improving safety and performance.
  • AC Line Isolation: Isolates sensitive circuits from the AC power line, protecting against voltage surges and improving safety.
  • DC-DC Converters: Provides isolation in DC-DC converters, protecting against ground loops and voltage transients.
  • Sensor Isolation: Isolates sensor signals from control circuitry, improving noise immunity and protecting sensitive electronics.
  • Digital Interface Isolation: Isolates digital interfaces, protecting against voltage spikes and ground loops.

Features:

  • High Isolation Voltage: Offers a high isolation voltage (typically 5000 Vrms) to protect against high voltage transients and ensure safety.
  • High Current Transfer Ratio (CTR): Provides a high CTR for efficient signal transfer with minimal power consumption.
  • Surface Mount Package: Available in a surface mount package, facilitating easy and efficient board assembly.
  • RoHS Compliant: Meets RoHS environmental standards, ensuring compliance with regulations.
  • Lead-Free: Manufactured using lead-free materials for environmental protection.

Benefits:

  • Enhanced Safety: Protects against high voltage transients, ensuring the safety of personnel and equipment.
  • Improved Signal Quality: Reduces noise and interference, improving signal integrity and reliability.
  • Increased System Reliability: Protects against voltage spikes and ground loops, enhancing overall system reliability.
  • Reduced Power Consumption: High CTR allows for efficient signal transfer, minimizing power consumption.
  • Simplified Assembly: Surface mount package simplifies the assembly process and reduces manufacturing costs.

Additional Details:

The PC817X4NSZ0F is designed to operate over a wide temperature range, typically from -30°C to +100°C, making it suitable for various industrial and commercial environments. It is available in tape and reel packaging for automated assembly. The forward current (IF) is typically around 50mA, and the collector-emitter voltage (VCEO) is typically around 80V. Specific CTR values can vary; consult the datasheet for detailed specifications.
