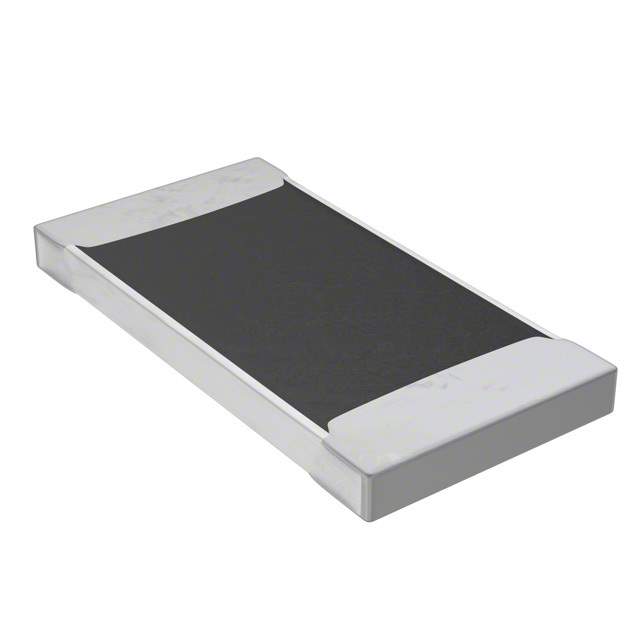

CSNL2512FTL500 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.0005
Tolerance ±1%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 170°C
Case / Package 2512
Height - Seated (Max) 0.057" (1.45mm)
Number of Terminations 2
Win Source Part Number 127536-CSNL2512FTL500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSNL2512FTL500 CAD Model

Description

Description

The CSNL2512FTL500 combines high durability with advanced functionality in a compact package. This component is perfect for applications that demand high power handling and precision.

Features and Benefits

  • High power handling capabilities.
  • Low-profile design for space-constrained applications.
  • Solderable terminations for secure connectivity.
  • Resilient under dynamic loads.

Applications

  • Power electronics
  • Telecommunication devices
  • Consumer appliances
  • Energy metering

Additional Details

With a focus on reliability, the CSNL2512FTL500 ensures minimal downtime and consistent performance across diverse applications.
