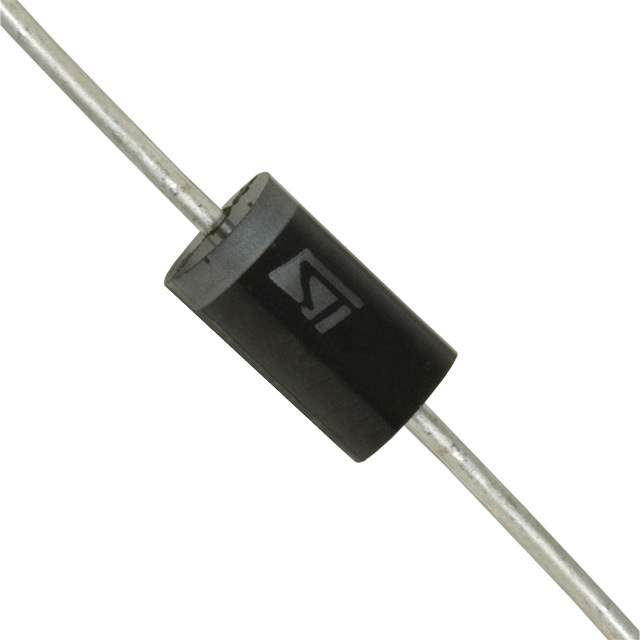

Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging AMMO PACKAGE
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 256V
Minimum Breakdown Voltage 285V
Max Clamping Voltage 529V
Peak Pulse Current(Ippm) 19A (8/20μs)
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Capacitance @ Frequency 500pF @ 1MHz
Mounting Through Hole
Case / Package DO-201
Win Source Part Number 093851-1.5KE300A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Family Name 1.5KE300A
Introduction Date January 27, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 1.5KE300A CAD Model

Description

The 1.5KE300A is a high-quality transient voltage suppression (TVS) diode from STMicroelectronics, designed to protect sensitive electronic equipment from voltage spikes and surges. This robust component is part of the 1.5KE series, which is well-regarded for its reliability and performance in challenging electrical environments.

Key Features

  • Transient Protection: The 1.5KE300A can clamp transient overvoltages and dissipate their energy, protecting downstream circuits from damage.
  • Large Surge Capability: With its 1500W peak pulse power capability at 10/1000μs waveform, this diode can handle significant surge events without compromise.
  • Breakdown Voltage: It has a stand-off voltage of 300V, making it suitable for a range of applications where this level of protection is required.
  • Uni-directional Functionality: This diode is designed to provide protection in one direction, making it ideal for DC applications.
  • High Temperature Range: The operating junction temperature range from -55°C to +175°C ensures stability and function in extreme conditions.
  • Compliance: It meets the ISO 9001 and ISO 14001 certification standards, ensuring a high level of quality and environmental management in its production.

Applications

The 1.5KE300A is versatile and can be used in a variety of applications, including:

  • Industrial systems
  • Communication devices
  • Power supply units
  • Automotive applications
  • Consumer electronics

Product Specifications

Parameter Value Peak Pulse Power Dissipation 1500W Stand-off Voltage 300V Operating Junction Temperature Range -55°C to +175°C Certifications ISO 9001, ISO 14001

The 1.5KE300A from STMicroelectronics is a powerful solution for safeguarding electronic systems against voltage transients. Its robust design and reliable performance make it an essential component for any application requiring voltage surge protection.
