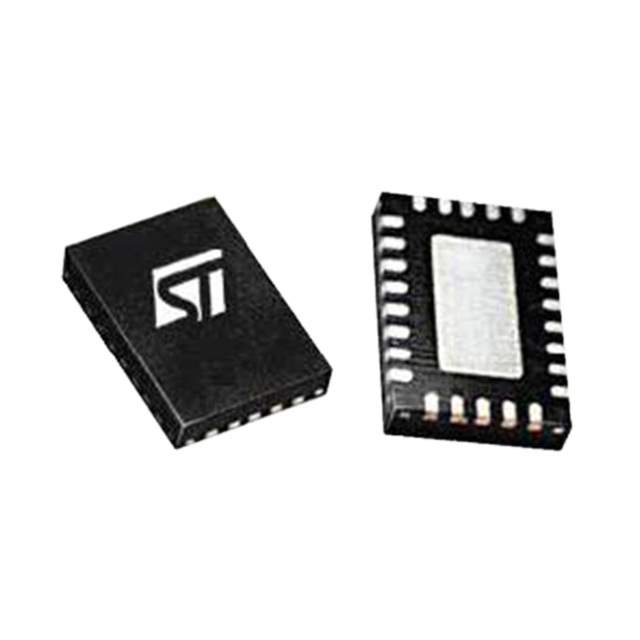

Overview of STMicroelectronics L6360TR Transceiver

The L6360TR from STMicroelectronics is a robust and versatile IO-Link transceiver designed to facilitate communication between sensors and actuators in industrial environments. This device is a monolithic IO-Link master port interface, which adheres to the latest IO-Link standards, ensuring seamless integration and interoperability with a wide range of industrial devices.

Key Features

• IO-Link Compliance: The L6360TR is fully compliant with IO-Link specification 1.1, which ensures it can communicate effectively with all IO-Link enabled devices.
• Wide Supply Voltage Range: It operates over a wide supply voltage range from 18 V to 32.5 V, making it suitable for various industrial applications.
• Robust Protection: The device features extensive protective measures, including reverse polarity protection, over-temperature shutdown, and short-circuit protection, ensuring reliable operation under harsh conditions.
• Programmable Output Stages: The L6360TR provides programmable output stages with current limiting and overload protection, which can be tailored to the needs of the connected devices.
• Diagnostic Features: Built-in diagnostic capabilities enable the detection of faults and assist in system maintenance and troubleshooting.
• Compact Design: Housed in a compact QFN-16 package, the L6360TR is designed for space-constrained applications.

Applications

The L6360TR is ideal for a variety of industrial applications, including:

• Factory automation
• Process control systems
• Industrial robotics
• Smart sensors and actuators integration

Technical Specifications

Some technical specifications of the L6360TR include:

• Supply Voltage: 18 V to 32.5 V
• Operating Temperature Range: -40°C to +85°C
• Package: QFN-16 (4x4 mm)
• Communication: IO-Link (COM1, COM2, COM3 modes)

The L6360TR by STMicroelectronics represents a reliable and efficient solution for modern industrial communication, providing the durability and functionality required for today's automated systems.
