Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series Timekeeper
Packaging Tube
Type Clock/Calendar
Features Leap Year
Date Format YY-MM-DD-dd
Interface Parallel
Operating Supply Voltage 4.75 V ~ 5.5 V
Current - Timekeeping (Maximum) 3mA @ 4.7V ~ 5.5V
Operating Temperature Range 0°C ~ 70°C
Mounting Style Through Hole

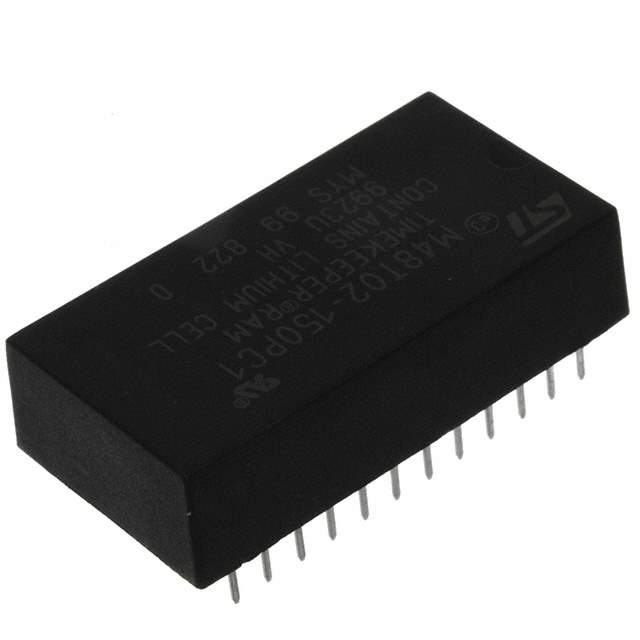

Package 24-DIP Module (0.600", 15.24mm)
Manufacturer Package 24-PCDIP, CAPHAT
Win Source Part Number 1210605-M48T02-70PC1
Manufacturer Homepage www.st.com
Family Name M48T02
Introduction Date March 23, 1998
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Security
Ultra Librarian 3D Model Ultra Librarian M48T02-70PC1 CAD Model

Description

The M48T02-70PC1 is a 16 Kbit 2Kb x 8 TIMEKEEPER<sup>® Static RAM integrated with a real-time clock from the industry-leading semiconductor manufacturer, STMicroelectronics. This high-performance, low-power RAM device is designed to provide a convenient and efficient battery-backed memory and timekeeping solution for a wide range of applications.

Key Features

  • Integrated Ultra-low Power SRAM and Real-time Clock (RTC): The device combines 2 Kb x 8 bits of static RAM with a built-in real-time clock, ensuring both data storage and precise timekeeping in one compact package.
  • High Data Retention Reliability: With a self-contained lithium battery and control circuitry, the M48T02-70PC1 guarantees data retention and clock functionality for over 10 years in the absence of external power.
  • Byte-wide Configuration: The byte-wide configuration of the SRAM allows for easy integration into a variety of system architectures, providing flexible and straightforward memory expansion.
  • Optimized Speed: This device operates with a speed of 70ns, ensuring fast access times that are suitable for high-performance computing systems.
  • Industry-standard Packaging: The M48T02-70PC1 is available in a JEDEC standard 24-pin DIP package, making it compatible with common board layouts and easy to integrate into existing designs.

Applications

The M48T02-70PC1 is ideal for a variety of applications where reliable data storage and timekeeping are essential. These include:

  • Industrial control systems
  • Telecommunications equipment
  • Network servers
  • Medical devices
  • Utility meters
  • Point-of-sale terminals

Product Summary

STMicroelectronics' M48T02-70PC1 is a versatile, reliable, and energy-efficient solution for systems requiring battery-backed SRAM with an integrated real-time clock. Its robust design and long-term data retention capabilities make it an excellent choice for critical applications where maintaining data integrity and accurate timekeeping is paramount.
