Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 25 Weeks
Features ARM® Cortex®-M4 series Microcontroller IC 32-Bit 72MHz 384KB (384K x 8) FLASH 64-LQFP (10x10)
Manufacturer STMicroelectronics
Series STM32F3
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit
Speed 72MHz
Connectivity CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals DMA, I2S, POR, PWM, WDT
Number of I/O 51
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
Supply Voltage 2V ~ 3.6V
Data Converters A/D 16x12b; D/A 1x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 64-LQFP
Case / Package 64-LQFP (10x10)
Family Name STM32F302
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number 497-19168, STM32F302RDT6-ND
Quantity per package 160
Popularity High
Supply and Demand Status Balance
Win Source Part Number 898149-STM32F302RDT6
Ultra Librarian 3D Model Ultra Librarian STM32F302RDT6 CAD Model

Description

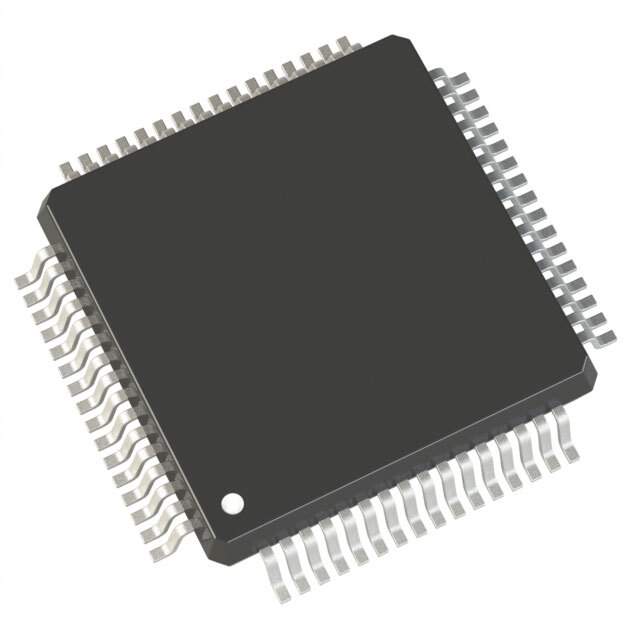

STM32F302RDT6 Microcontroller

The STM32F302RDT6 is a state-of-the-art microcontroller unit (MCU) from STMicroelectronics, designed to offer a perfect blend of performance, power efficiency, and advanced features for a wide range of applications. This MCU is part of the STM32F3 series, which is known for its high-performance ARM Cortex-M4 core with a floating-point unit (FPU), making it ideal for complex and math-intensive operations.

The STM32F302RDT6 operates at a frequency of up to 72 MHz, providing the computational power necessary for tasks that require quick processing and real-time operations. It comes with a rich set of peripherals and I/Os that enhance its connectivity and control capabilities, suitable for industrial control, medical equipment, consumer electronics, and more.

Key Features:

  • 32-bit ARM Cortex-M4 core with DSP and FPU instructions
  • Maximum operating frequency of 72 MHz
  • 384 KB of Flash memory and 40+4 KB of SRAM
  • High-resolution timer for advanced motor control
  • Multiple communication interfaces: I2C, SPI, USART, CAN, and USB
  • 12-bit ADCs, DAC channels, and fast comparators
  • Advanced-control PWM timer for precise waveform generation
  • Operating voltage range from 2.0 to 3.6 V
  • Temperature range from -40°C to +85°C (industrial grade)
  • 64-pin LQFP package for easy integration into various designs

The MCU's memory architecture includes a generous amount of Flash memory and SRAM, which allows for efficient storage and execution of complex firmware and software applications. The high-resolution timer, combined with the advanced-control PWM timer, makes the STM32F302RDT6 particularly suitable for high-end motor control applications, where precision and efficiency are paramount.

Connectivity is a strong suit of the STM32F302RDT6, offering a variety of interfaces for communication with other devices and peripherals. This facilitates the creation of sophisticated and interconnected systems within consumer, industrial, and medical applications.

In summary, the STM32F302RDT6 from STMicroelectronics is a robust and feature-rich MCU that offers designers the flexibility, performance, and efficiency required for advanced and demanding applications. Its comprehensive feature set ensures that it can meet the needs of a variety of industries and provide a reliable platform for innovative electronic designs.
