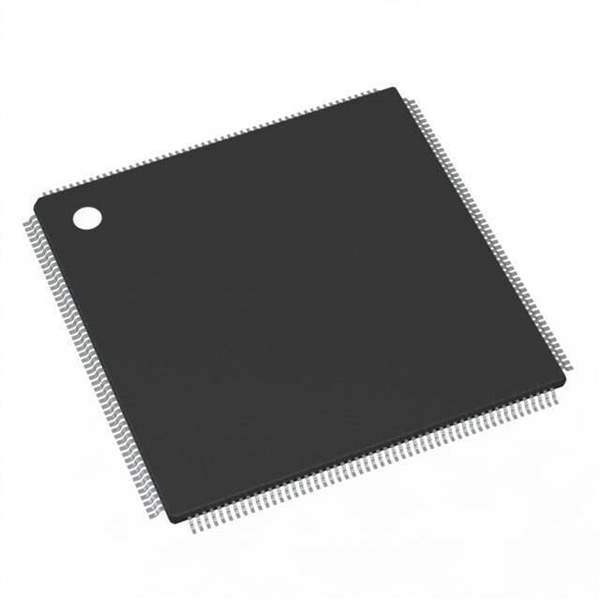

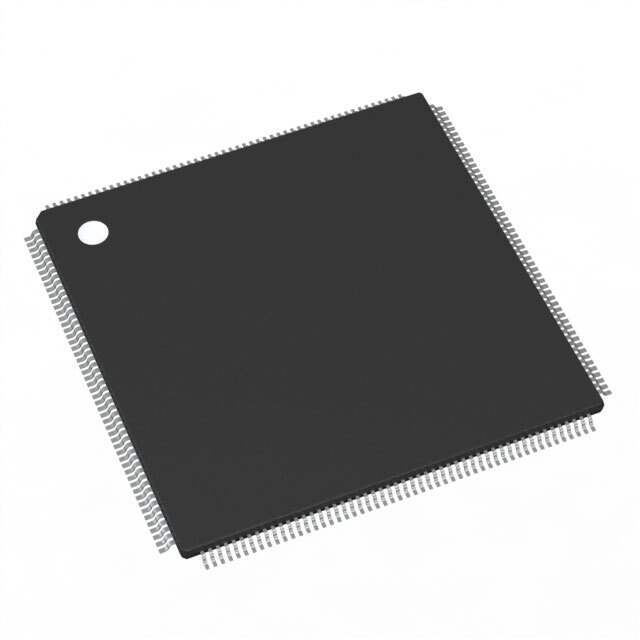

STM32H745BIT3 STMicroelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1310535-STM32H745BIT3
Category Integrated Circuits (ICs)>Embedded >Microcontrollers
Mfr STMicroelectronics
Packaging  Tray
Part Status Active
Core Processor ARM® Cortex®-M4/M7
Core Size 32-Bit Dual-Core
Speed 240MHz, 480MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 148
Ultra Librarian 3D Model Ultra Librarian STM32H745BIT3 CAD Model

Description

STM32H745xI/G devices are based on the high-performance Arm® Cortex®-M7 and Cortex®-M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz and the Cortex®-M4 core at up to 240 MHz. Both cores feature a floating point unit (FPU) which supports Arm® single- and double-precision (Cortex®-M7 core) operations and conversions (IEEE 754 compliant), including a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
