Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr STMicroelectronics
Series STM32MP1
Package Tray
Core Processor ARM® Cortex®-A7
Number of Cores/Bus Width 2 Core, 32-Bit
Speed 209MHz, 650MHz
Co-Processors/DSP ARM® Cortex®-M4
RAM Controllers DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration Yes
Display & Interface Controllers HDMI-CEC, LCD
Ethernet 10/100Mbps (1)
USB USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Voltage - I/O 2.5V, 3.3V
Temperature Range - Operating -40°C ~ 125°C (TA)
Security Features ARM TZ

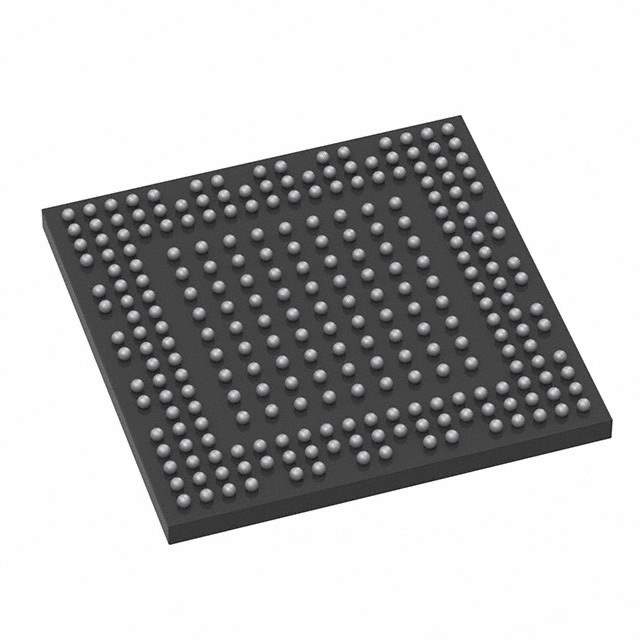

Package / Case 257-TFBGA
Supplier Device Package 257-TFBGA (10x10)
Additional Interfaces CAN, Ethernet, I²C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Base Product Number STM32
Other Names 497-19111
Standard Package 184
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1261845-STM32MP153AAD3
Ultra Librarian 3D Model Ultra Librarian STM32MP153AAD3 CAD Model

Description

STM32MP153AAD3 Microprocessor from STMicroelectronics

The STM32MP153AAD3 is a highly capable microprocessor from STMicroelectronics, designed to cater to the increasing demands of sophisticated embedded applications. This processor is part of the STM32MP1 series, which is renowned for its dual-core architecture, combining a high-performance Arm Cortex-A7 core with a Cortex-M4 core. The STM32MP153AAD3 is particularly well-suited for industrial, consumer, smart home, health, and wellness applications.

Key Features:

  • Dual-core Configuration: The STM32MP153AAD3 boasts a dual-core design with an Arm Cortex-A7 core running up to 800 MHz and a Cortex-M4 core running up to 209 MHz, ensuring high computing power and real-time capabilities.
  • Advanced Peripherals: This microprocessor includes a wide range of I/Os and peripherals, such as multiple audio and digital interfaces, camera interfaces, an LCD-TFT controller, and Ethernet with IEEE 1588 precision time protocol support.
  • Enhanced Graphics: With its 3D GPU, the processor is capable of delivering advanced graphics, suitable for human-machine interface (HMI) applications.
  • Security and Safety Features: The STM32MP153AAD3 is equipped with hardware security features, including a TrustZone for Armv7-A, cryptographic acceleration, and secure boot options, offering a secure foundation for applications that demand high levels of data protection and reliability.
  • Power Efficiency: Designed with power efficiency in mind, this microprocessor supports multiple reduced power modes to ensure energy-saving operation without compromising performance.

Applications:

The versatility of the STM32MP153AAD3 makes it ideal for a broad range of applications, including:

  • Industrial control systems
  • Internet of Things (IoT) devices
  • Smart home automation
  • Medical devices and healthcare systems
  • Wearable technology
  • Audio and video streaming devices

In summary, the STM32MP153AAD3 from STMicroelectronics is a robust and versatile microprocessor that offers a balance of performance, power efficiency, and security. It stands out as an excellent choice for developers seeking a reliable and feature-rich platform for their next-generation embedded products.
