Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Core Processor STM8
Part Core Size 8-Bit
Speed(Frequency) 16MHz
Number of I/O 16
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
EEPROM Size 640 x 8
Data RAM Size 1K x 8
Supply Voltage - Operating 2.95 V to 5.5 V
Data Converters A/D 5x10b
Temperature Range - Operating -40°C to 85°C (TA)

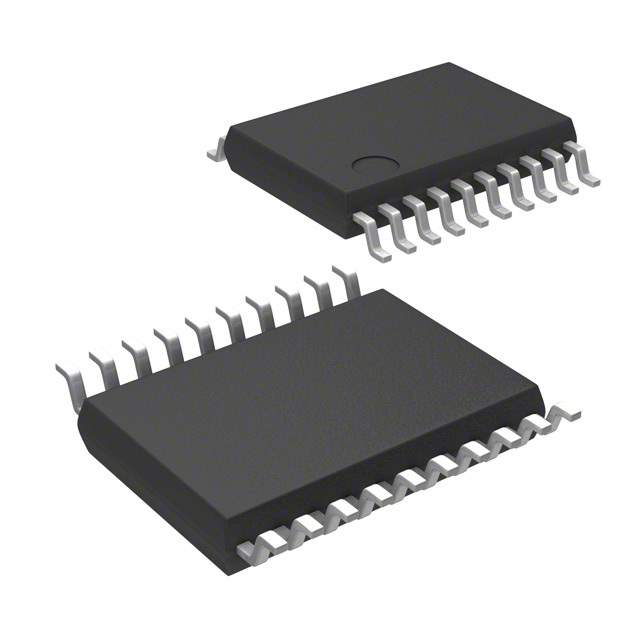

Case / Package 20-TSSOP
Win Source Part Number 037836-STM8S103F2P6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name STM8S103F2
Introduction Date June 05, 2008
ECCN EAR99
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian STM8S103F2P6 CAD Model

Description

STM8S103F2P6 Microcontroller by STMicroelectronics

The STM8S103F2P6 is a versatile and high-performance microcontroller from STMicroelectronics, designed to deliver an exceptional balance of performance, power efficiency, and peripheral set for a wide range of applications. This device is part of the STM8S mainstream access line, which is renowned for its robust architecture, enhanced peripherals, and low power consumption.

At the heart of the STM8S103F2P6 microcontroller is an advanced STM8 core operating at up to 16 MHz frequency. It comes with 4 Kbytes of Flash program memory, which is more than enough for simple applications. The 128 bytes of true data EEPROM and 640 bytes of RAM ensure that your applications run smoothly and efficiently.

The device features a rich set of peripherals including:

  • 10-bit ADC (Analog to Digital Converter) with up to 5 multiplexed channels, allowing for precise sensor signal acquisition.
  • UART (Universal Asynchronous Receiver/Transmitter) for serial communication, which is essential for IoT applications and device-to-device communication.
  • I2C and SPI interfaces for multi-peripheral connectivity, enabling the integration of sensors, memory modules, and other peripherals.
  • Timers, including an advanced control timer, a system timer, and two general-purpose timers, which are crucial for tasks requiring precise timing and PWM generation.

Moreover, the STM8S103F2P6 is designed with an integrated internal clock oscillator, which reduces the need for external clock components, thus saving on system cost and board space. The microcontroller also supports a wide operating voltage range from 2.95V to 5.5V, making it suitable for various power supply conditions.

STMicroelectronics has also put a strong emphasis on the ease of development for the STM8S103F2P6. It is supported by the STVD-STM8 development environment, ST Visual Develop IDE, and the STVP-STM8 programming tool, which simplifies the programming and debugging process.

Whether you are designing consumer electronics, home appliances, automotive systems, or other embedded applications, the STM8S103F2P6 provides a cost-effective, yet powerful, solution to meet your design requirements.
