Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr STMicroelectronics
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 790 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 100 V
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAflat Notch
Operating Temperature - Junction 175°C
Base Product Number STPS2
Other Names 497-STPS2H100AFNCT,497-STPS2H100AFNDKR,497-STPS2H100AFNTR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282078-STPS2H100AFN
Ultra Librarian 3D Model Ultra Librarian STPS2H100AFN CAD Model

Description

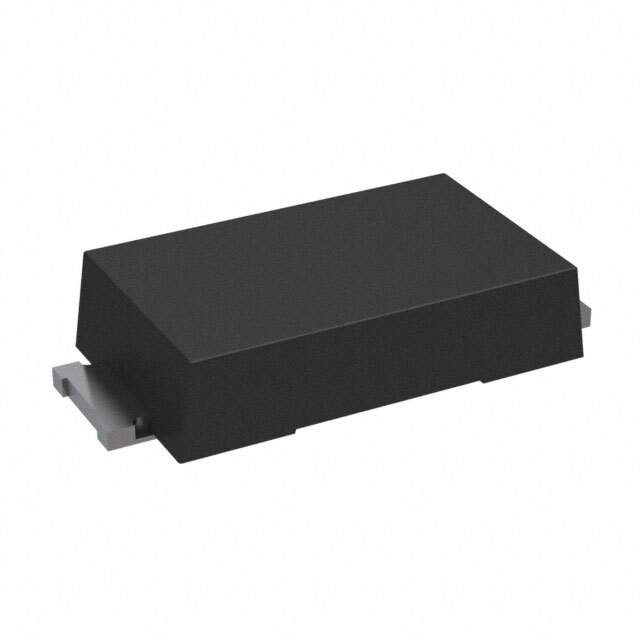

STPS2H100AFN - STMicroelectronics Schottky Rectifier

The STPS2H100AFN is a high-efficiency power Schottky rectifier designed by STMicroelectronics, renowned for its robust performance and reliability in a wide array of applications. This rectifier is particularly well-suited for switch mode power supplies, converters, and free-wheeling diodes in consumer and industrial electronics, offering a seamless solution for voltage rectification and power management tasks.

Constructed with silicon Schottky barrier technology, the STPS2H100AFN boasts a low forward voltage drop, which significantly reduces power losses and enhances overall efficiency. This characteristic makes it an excellent choice for systems where power efficiency is paramount. The device is capable of handling a continuous forward current of 2A, and its high junction temperature capability ensures stable operation even under high stress conditions.

The STPS2H100AFN features a repetitive peak reverse voltage of 100V, making it suitable for high-frequency operations and providing a sufficient margin for safety in most standard applications. Its fast switching capabilities ensure minimal switching losses and make it an ideal component for high-efficiency power supply designs.

Encased in an SMBflat-3L package, the STPS2H100AFN offers a compact footprint and low profile, allowing for easy integration into space-constrained designs without sacrificing performance. The package is designed to optimize thermal resistance and ensure good heat dissipation, contributing to the device's reliability and longevity.

STMicroelectronics has also focused on environmental concerns by making the STPS2H100AFN compliant with RoHS and halogen-free directives, ensuring that the use of hazardous substances is minimized in its production. This compliance reflects a commitment to environmental sustainability while providing customers with a product that meets current regulatory standards.

Overall, the STPS2H100AFN from STMicroelectronics is a versatile and efficient solution for designers looking to implement a reliable Schottky rectifier into their power management systems. With its combination of high performance, thermal efficiency, and environmental consideration, it stands out as a solid choice for a wide range of electronic applications.
