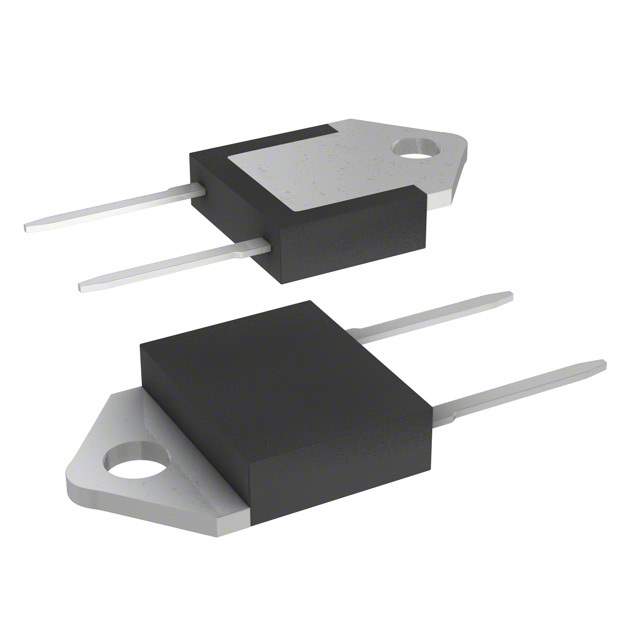

Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete (End Of Life)
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) at If 1.45V at 30A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage at Vr 15μA at 400V
Mounting Style Through Hole
Manufacturer Package DOP3I-2 Insulated (Straight Leads)
Supplier Device Package DOP3I
Operating Temperature - Junction -40°C ~ 175°C
Part Number Series STTH30
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809637-STTH30R04PI
Ultra Librarian 3D Model Ultra Librarian STTH30R04PI CAD Model

Description

The STTH30R04PI is a state-of-the-art ultrafast recovery diode manufactured by STMicroelectronics, a global semiconductor leader. This high-performance device is designed specifically for switching power supplies and other power conversion systems. With its exceptional switching speed and robust design, the STTH30R04PI is ideal for high-frequency applications where efficiency and reliability are critical.

Key Features

  • High Reverse Voltage Capability: With a reverse voltage of 400V, the STTH30R04PI can handle high-voltage applications with ease.
  • Ultrafast Soft Recovery: The diode's recovery time is less than 35ns, minimizing power losses and improving overall efficiency.
  • High Surge Current Capability: Designed to withstand high surge currents, this diode ensures reliability under stressful conditions.
  • Low Forward Voltage Drop: The low forward voltage drop (VF) of the diode helps to reduce power dissipation and improve thermal performance.
  • Insulated Package: The device comes in an insulated package (ISOWATT220AB), providing electrical isolation from the heatsink without the need for additional insulating hardware.

Applications

The STTH30R04PI is versatile and can be used in a range of applications, including:

  • Switching power supplies
  • Power factor correction circuits
  • Freewheeling diodes in converters and inverters
  • Snubber diodes
  • High-frequency rectifiers

Performance and Quality

STMicroelectronics is known for its commitment to quality and performance. The STTH30R04PI is no exception, offering superior performance in terms of speed, efficiency, and reliability. It is designed to meet the stringent requirements of modern power conversion equipment, ensuring a long operational life and consistent performance even under harsh conditions.

Environmental Impact

STMicroelectronics is dedicated to environmental sustainability. The STTH30R04PI is manufactured with eco-friendly practices and materials, adhering to international environmental standards. This commitment ensures that the product not only meets the technical demands of today's electronic devices but also contributes to a greener future.
