Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 525V
Id - Continuous Drain Current 2.5A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 2.6Ohm at 1.25A, 10V
Gate Source Voltage(th) (Maximum) at Id 4.5V at 50μA
Gate Charge (Qg) (Maximum) at Vgs 11nC at 10V
Gate Source Voltage (Maximum) ±30V
Input Capacitance (Ciss) (Maximum) at Vds 334pF at 100V
Power Dissipation (Maximum) 45W
Temperature Range - Operating 150°C
Mounting Style Through Hole
Supplier Device Package I-PAK
Manufacturer Package TO-251-3 Short Leads, IPak, TO-251AA
Manufacturer Pack Quantity 75
MSL Level 1 (Unlimited)
Win Source Part Number 1262265-STU4N52K3
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STU4N52K3 CAD Model

Description

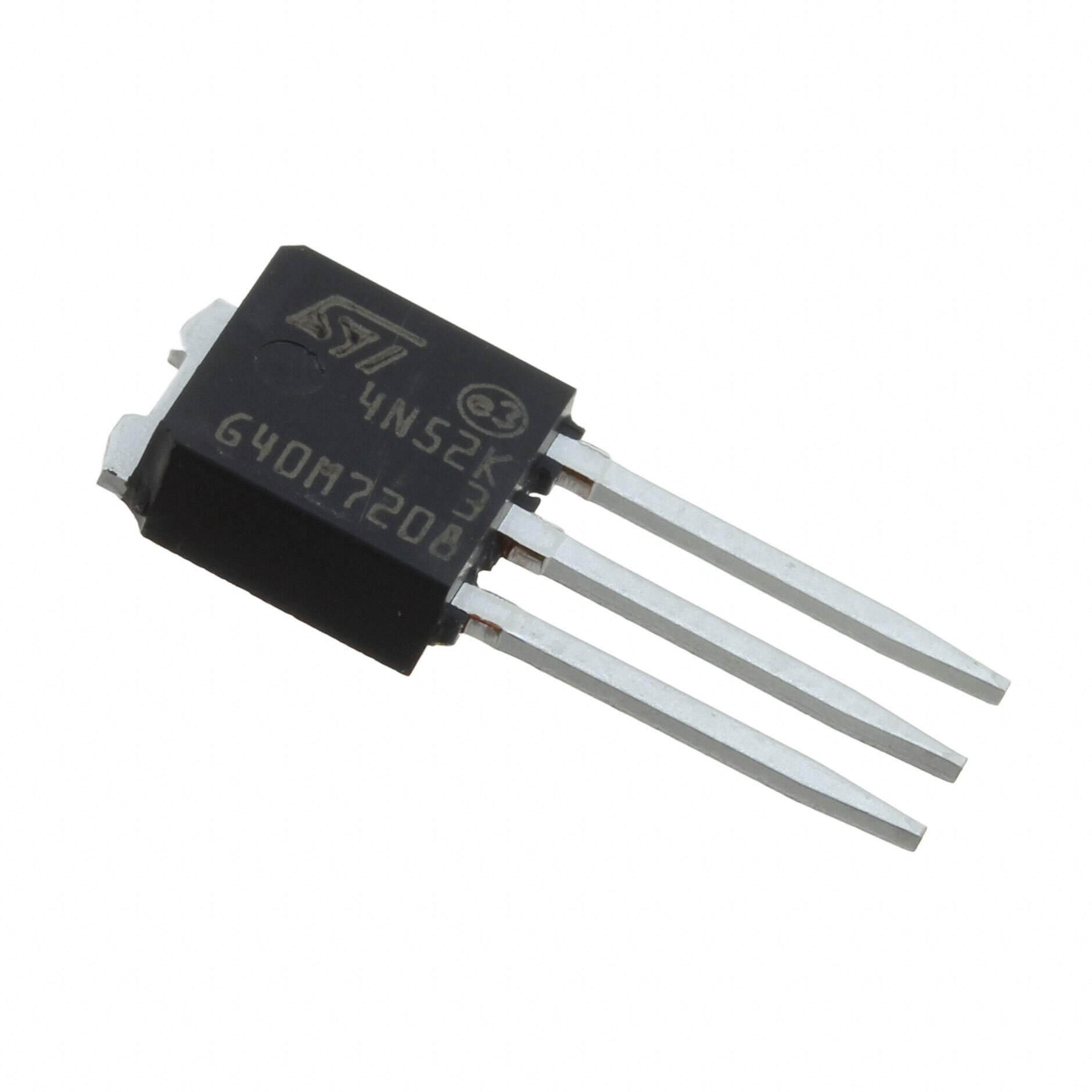

The STU4N52K3 is a high-performance N-channel Power MOSFET presented by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This MOSFET is part of the SuperMESH™3 family, which is renowned for its excellent RDS(on) area ratio and reduced gate charge. These features make it a highly efficient choice for a wide range of power applications.

With a voltage rating of 525 V, the STU4N52K3 is designed to handle high-voltage applications with ease. The device boasts an impressively low on-resistance of 3.7 Ω typical, which translates to reduced conduction losses and improved overall efficiency. The MOSFET is capable of delivering a continuous current of 4 A, making it suitable for high-current operations.

The TO-251 package of the STU4N52K3 ensures a compact footprint while providing excellent thermal performance. This package is compatible with various mounting techniques, which offers flexibility for PCB designers. The device also features Zener-protected gate, which helps to withstand rigorous voltage spikes and enhances its reliability in harsh environments.

Applications for the STU4N52K3 are diverse and include switch-mode power supplies (SMPS), LED lighting, DC-DC converters, power management systems, and other power-related applications where efficiency and reliability are critical. Its fast switching speed and robustness make it an ideal choice for high-performance power designs.

STMicroelectronics' commitment to innovation is reflected in the STU4N52K3, which integrates the latest semiconductor technology to offer a product that not only meets but exceeds the expectations of power designers looking for high-efficiency, high-reliability components.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to visit the STMicroelectronics website or contact their support team for in-depth technical assistance.
