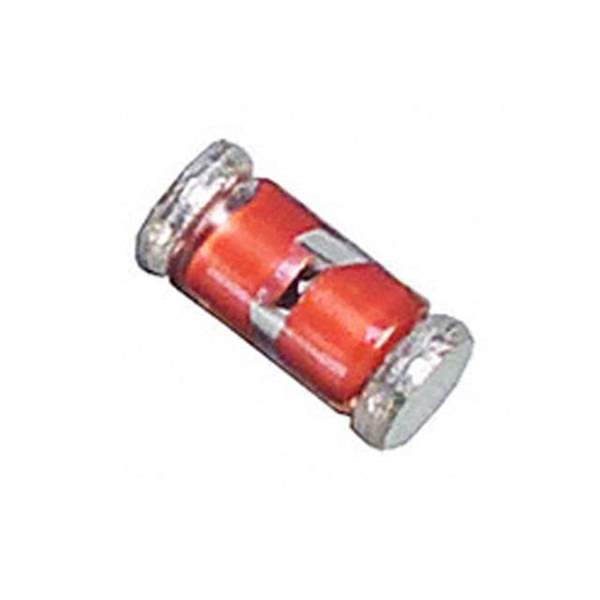

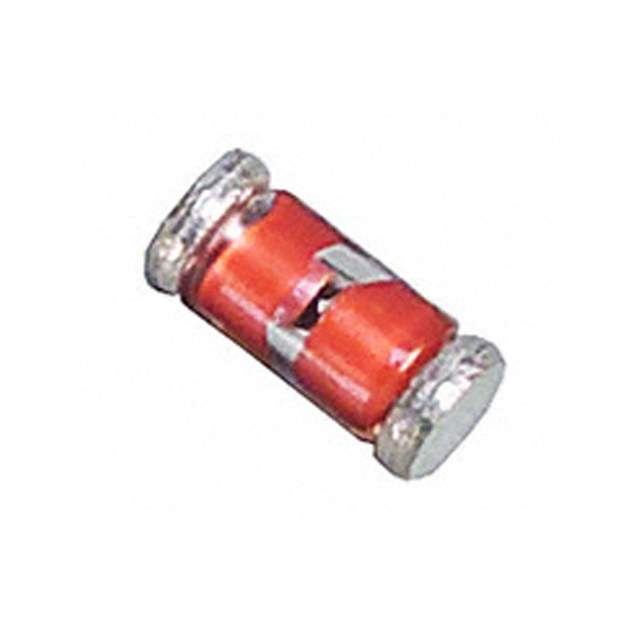

The TMMBAT43 is a high-performance Schottky diode from STMicroelectronics, renowned for its low forward voltage drop and superior switching speed. This diode is designed to meet the needs of a wide array of electronic applications, particularly those requiring efficient voltage rectification and fast switching capabilities.
Key Features
- Low Forward Voltage Drop: The TMMBAT43 offers a very low forward voltage drop, which results in reduced power loss and higher efficiency in operation.
- Fast Switching Speed: With its Schottky barrier technology, the diode ensures ultra-fast switching, making it ideal for high-frequency applications.
- Low Leakage Current: The leakage current of the TMMBAT43 is minimal, which enhances the overall performance of the circuit by reducing power consumption when the diode is in the reverse-biased state.
- Surface-Mount Package: The device comes in a small SOD-323 package, which is suitable for surface-mount technology (SMT), allowing for high-density PCB designs.
Applications
The versatility of the TMMBAT43 Schottky diode makes it an excellent choice for various applications, including:
- Power Supply Circuits
- DC-DC Converters
- Reverse Voltage Protection
- Switching Power Supplies
- Freewheeling Diodes in Converters and Motor Control Circuits
- Charge Pump Circuits
Technical Specifications
Parameter
Value
Repetitive Peak Reverse Voltage (V<sub>RRM)
30 V
Average Forward Current (I<sub>F(AV))
200 mA
Non-Repetitive Peak Forward Surge Current (I<sub>FSM)
600 mA
Operating Junction Temperature (T<sub>j)
-40°C to +125°C
Storage Temperature Range (T<sub>stg)
-65°C to +150°C
With its robust design and reliable performance, the STMicroelectronics TMMBAT43 Schottky diode is a preferred choice for engineers and designers looking to enhance the efficiency and speed of their electronic circuits.
