Products specifications

Manufacturer STMicroelectronics
Packaging Reel
Switch Type General Purpose
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4V ~ 28V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Maximum) 8A
Rds On (Typ) 140mOhm
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 16-PowerLFSOP
Supplier Device Package PowerSSO-16
Mounting Style SMD
Part Number Series VNQ7140
Manufacturer Pack Quantity 2,500
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812740-VNQ7140AJTR-E
Ultra Librarian 3D Model Ultra Librarian VNQ7140AJTR-E CAD Model

Description

The VNQ7140AJTR-E is a remarkable automotive-grade product from STMicroelectronics, designed to address the demanding requirements of modern vehicle applications. This high-side driver is part of ST's VIPower M0-7 series and is engineered to deliver a robust and efficient solution for driving resistive or inductive loads with one side connected to ground.

Key Features

  • Integrated Channels: The device integrates four independent channels, each capable of delivering up to 2.5A of continuous current, making it suitable for a diverse range of automotive applications.
  • Protection Systems: It is equipped with a multitude of protection features including overcurrent, overtemperature, load dump voltage surge, and short-circuit protection, ensuring reliable operation under harsh conditions.
  • Diagnostic Functions: Each channel is endowed with diagnostic functions that provide feedback on the status of the load, including open-load detection in off-state and real-time current sensing.
  • CMOS Compatible Inputs: The VNQ7140AJTR-E's inputs are CMOS/TTL compatible, allowing for easy interfacing with microcontrollers and other logic devices.

Applications

The VNQ7140AJTR-E is particularly suited for a variety of automotive applications, including but not limited to:

  • Lamp driving
  • Heating resistors
  • Motor driving
  • Inductive load driving

Quality and Reliability

As an automotive-grade product, the VNQ7140AJTR-E meets stringent quality standards including AEC-Q100 certification. Manufactured with STMicroelectronics' state-of-the-art technology, it is designed to withstand the extreme conditions of the automotive environment.

Package and Availability

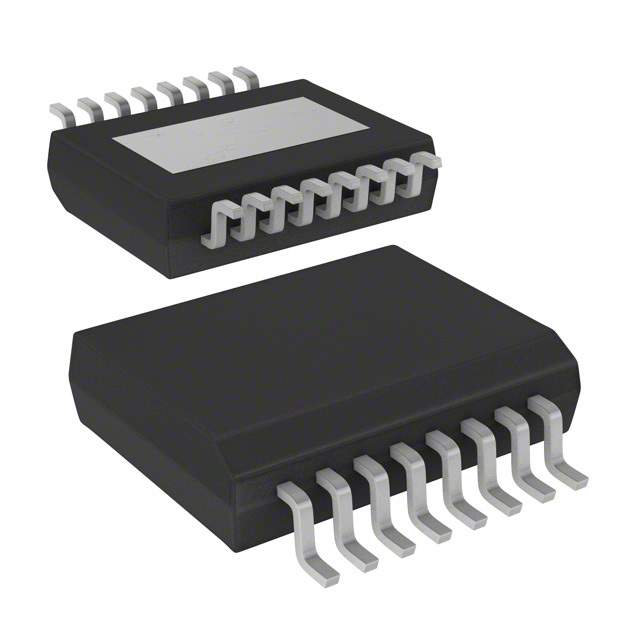

The VNQ7140AJTR-E is available in a PowerSSO-16 package, which offers a compact footprint while ensuring optimal thermal performance. This package is also lead-free and complies with RoHS regulations, reflecting STMicroelectronics' commitment to environmental sustainability.

With its combination of integration, protection, and diagnostic features, the VNQ7140AJTR-E stands out as a sophisticated solution for driving loads in automotive environments, providing designers with a reliable and efficient component for their high-performance applications.
