Products specifications

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation 2FSK, GFSK, MSK, OOK
Frequency 2.4GHz
Data Rate (Max) 500kBaud
Power - Output 1dBm
Sensitivity -104dBm
Serial Interfaces SPI
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 13.3mA to 19.6mA
Current - Transmitting 11.1mA to 21.5mA
Temperature Range - Operating -40°C to 85°C

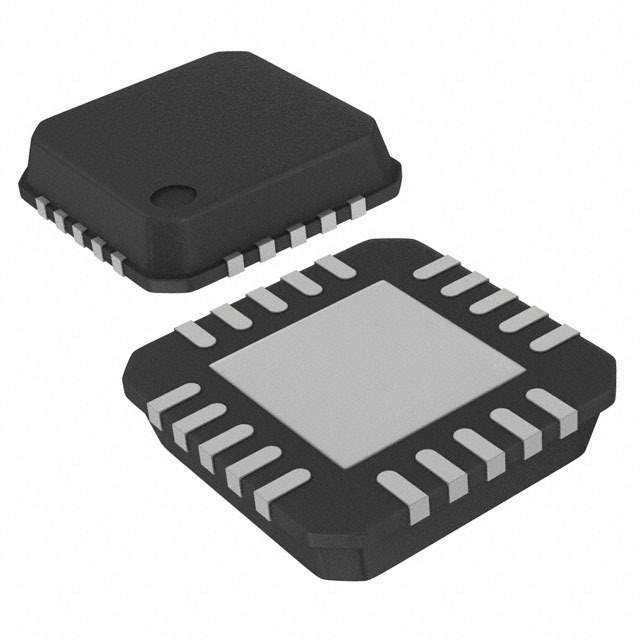

Dimension 20-VFQFN Exposed Pad
Win Source Part Number 012765-CC2500RTKR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CC2500
Introduction Date December 13, 2004
Country of Origin Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CC2500RTKR CAD Model

Description

CC2500RTKR Wireless Transceiver

The CC2500RTKR is a 2.4 GHz wireless transceiver that provides robust wireless communication solutions for diverse applications such as smart home devices and industrial controls.

  • Smart Lighting: Powers communication in modern lighting systems for control and automation.
  • Industrial Equipment: Enables wireless controls and monitoring for manufacturing applications.
  • Remote Monitoring: Facilitates data transmission in remote sensing networks.

Features & Benefits

  • Robust Design: Offers high-quality communication in challenging environments.
  • Versatile Applications: Suitable for a broad range of wireless communication needs.
  • Energy Efficient: Ensures low power consumption, extending device battery life.

With its proven performance, the CC2500RTKR stands out as a reliable component in any wireless communication infrastructure.
