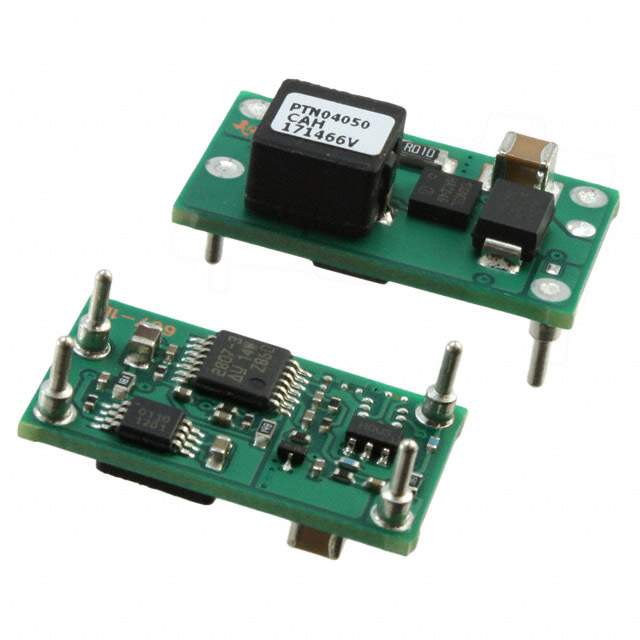

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN04050C
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5 ~ 15 V
Current - Output (Max) 2.4A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 4-DIP Module
Size / Dimension 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 90%
Power (Watts) - Max 12W
Win Source Part Number 210346-PTN04050CAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTN04050CAH CAD Model

Description

The PTN04050CAH is a high-performance, integrated power module from Texas Instruments, a globally recognized leader in the semiconductor industry.

  • Type: Non-isolated power module
  • Output Voltage Range: 0.9 V to 3.6 V
  • Regulation: Excellent line and load regulation
  • Efficiency: Up to 96%
  • Features: Auto-track sequencing
  • Safety: Over-temperature and under-voltage lockout
  • Output: Output current limit
  • Size: Compact
