Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 34 Weeks
Features Thermostat Programmable Active Low Open Drain
Manufacturer Texas Instruments
Package Reel - TR
Operating Temperature Range -55°C ~ 130°C
Mounting Surface Mount

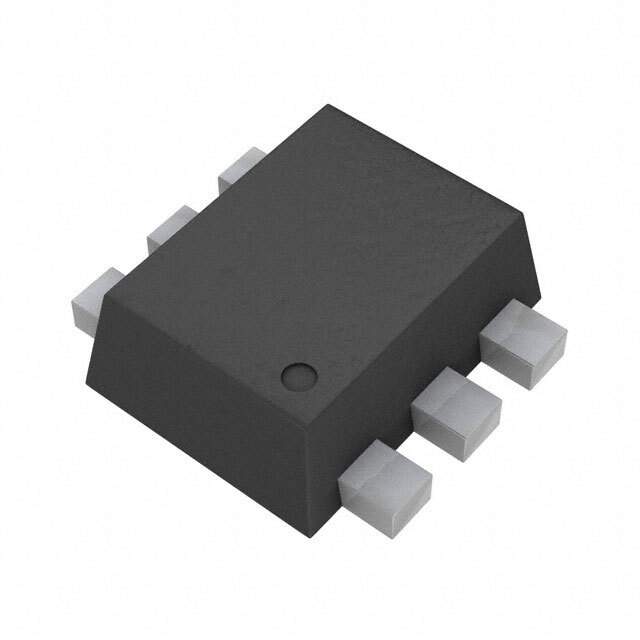

Package SOT-563, SOT-666
Family Name TMP390
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 296-TMP390A3DRLRTR, 296-TMP390A3DRLRDKR, 296-TMP390A3DRLRCT
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 900430-TMP390A3DRLR
Ultra Librarian 3D Model Ultra Librarian TMP390A3DRLR CAD Model

Description

The TMP390A3DRLR is a high-precision, low-power temperature switch from Texas Instruments (TI) designed to provide reliable thermal monitoring across a wide range of applications. This advanced temperature sensor is part of TI's portfolio of temperature sensing solutions that cater to the needs of modern electronic systems, where precise temperature control is crucial for performance and safety.

Key Features

  • Accuracy: The TMP390A3DRLR offers outstanding accuracy, ensuring that temperature readings are reliable and consistent, which is vital for maintaining system stability and performance.
  • Low Power Consumption: Designed with energy efficiency in mind, this temperature switch operates with minimal power, making it ideal for battery-powered and portable devices.
  • Programmable Temperature Thresholds: Users can set specific temperature thresholds, allowing for customized thermal management that can be tailored to the needs of the application.
  • Dual-Channel Monitoring: With two independent temperature inputs, the TMP390A3DRLR can monitor multiple points, providing more comprehensive thermal data.
  • Wide Temperature Range: This device is capable of operating over a broad temperature spectrum, making it versatile for use in various environments.

Applications

The TMP390A3DRLR is suitable for a diverse array of applications, including but not limited to:

  • Consumer Electronics
  • Computing Systems
  • Industrial Equipment
  • Telecommunications Infrastructure
  • Automotive Systems

Product Specifications

As a product of Texas Instruments, the TMP390A3DRLR is manufactured to the highest quality standards. It comes in a compact DRL package, which is conducive to space-constrained designs. The device operates on a supply voltage ranging from 1.8V to 5.5V, accommodating various system power requirements. It also features open-drain outputs, which provides flexibility in interfacing with other system components.

For design engineers and system integrators looking for a reliable thermal monitoring solution, the Texas Instruments TMP390A3DRLR temperature switch stands out as a smart choice. With its precision, low power consumption, and programmability, it is poised to enhance the safety and efficiency of a wide range of electronic systems.
