Thin-Film Capacitors Further Expand Power Capacitor Product Range

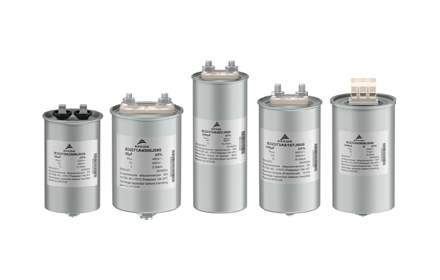

The B32370* to B32374* series of capacitors have a rated voltage range of 250 VRMS-600 VRMS and a capacity range of 5μF to 600μF. The maximum current capability of different types of capacitors covers 15A to 60A. Capacitors range in diameter from 40 mm to 136 mm and heights from 64 mm to 265 mm. The newly introduced capacitors are extremely reliable and have a service life of up to 100,000 hours. The capacitor uses a synthetic resin as a filler material and does not contain PCB harmful substances. This design makes it possible to continuously operate at a temperature of 70°C. Products are in line with IEC 61071-1 standards, and passed the UL certification.

The studs at the bottom of the capacitor are used for secure fixation and grounding. The capacitor has a self-healing function and is internally equipped with a safety mechanism that breaks the pressure.

These power capacitors are widely used in UPS systems and can also be used as output filter circuits for photovoltaic and wind turbine inverters or inverters.

main application

• UPS system filter circuit

• Frequency converter

Main features and benefits

• Wide range of capacities and voltages
• Up to 60A withstand current strength
