Ultra-thin power supply IC XCM414 series：low-power wireless power supply program solution

Terence Semiconductor Corporation (Second Tokyo Stock Exchange: 6616) has developed a multi-chip module power IC that integrates four Schottky diodes and LDO Terence voltage regulators.

In recent years, with the carrying thin lithium-ion battery and super capacitor smart card products continue to increase, there has been a simple wireless charging requirements.

XCM414 series of products, in the package components inside the bridge with four Schottky diodes, the input AC (AC) full-wave rectification, the external capacitor after smoothing, the input to the internal LDO voltage regulator. This module power supply IC corresponds to high voltage input, output stable voltage. The stable DC output voltage is obtained from the AC voltage by mounting the Schottky diode bridge and LDO voltage regulator necessary for simple wireless power supply to the same package.

Using a very high only 0.33mm ultra-thin package components, the most suitable for smart cards, requiring small and low consumption of IoT components, hearing equipment (wireless headset, hearing aids, etc.)
And other applications. Terios for this application this year to strengthen the product lineup.

Terry will also be in the future according to market demand for the rapid development of products, to achieve the prosperity of the community continue to contribute.

【XCM414 series of products expertise】

• A diode bridge and an LDO voltage regulator are mounted in one package

· Ultra-thin package package USP-8B10 (2.6 x 2.9 x h0.33mm)

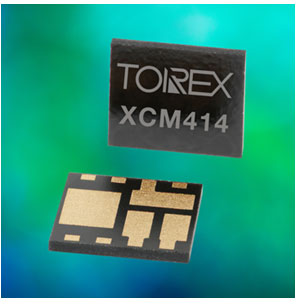

▲ XCM414 Series USP-8B10 (2.6 x 2.9 x h0.33mm)

Search for more Terence XCM series products

(XCM403,XCM406,XCM514,XCM517)
