Part No HSDNARPPCB13A
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies

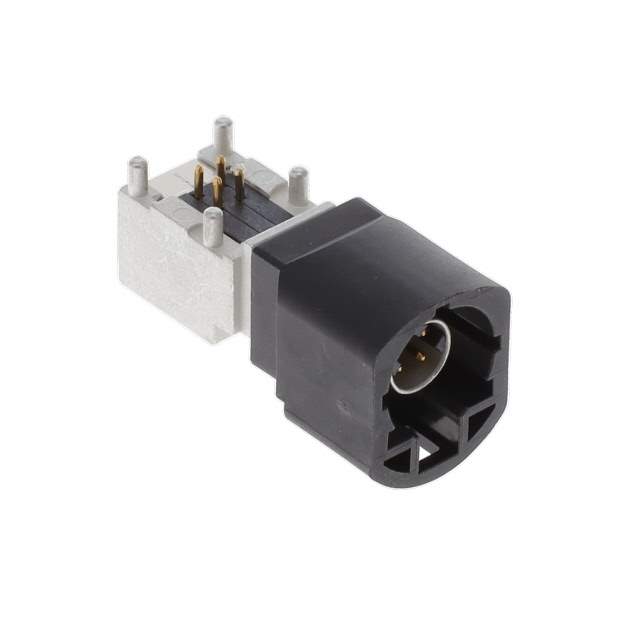

Description CONN HSD+0 R/A PLUG A CODE / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Reel - TR
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Through Hole, Right Angle
Fastening Type Latch Lock
Number of Ports 1
Features Code A
Housing Color Black
Center Contact Material Copper Alloy
Body Material Zinc Alloy
Body Finish Tin
Center Contact Plating Gold
Dielectric Material Thermoplastic
Temperature Range - Operating -40°C ~ 105°C
Mating Cycles 25
Base Product Number HSDNARPP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number HSDNARPPCB13ADKR,HSDNARPPCB13ATR,HSDNARPPCB13ACT
Standard Package 250
Win Source Part Number 1336679-HSDNARPPCB13A
Ultra Librarian 3D Model Ultra Librarian HSDNARPPCB13A CAD Model

Description

The Amphenol ICC (Commercial Products) 1336679-HSDNARPPCB13A is a Fakra, quadraxial, plug male pin, solder termination connector with a black housing color.

  • Product: Fakra, Quadraxial Connector
  • Connector Type: Plug, Male Pin
  • Termination: Solder
  • Housing Color: Black
  • Code: A
  • Fastening Type: Latch Lock
  • Impedance: 100Ohm
  • Operating Temperature: -40°C to 105°C
  • RoHS Compliant: Yes
  • Mounting Type: Through Hole, Right Angle
