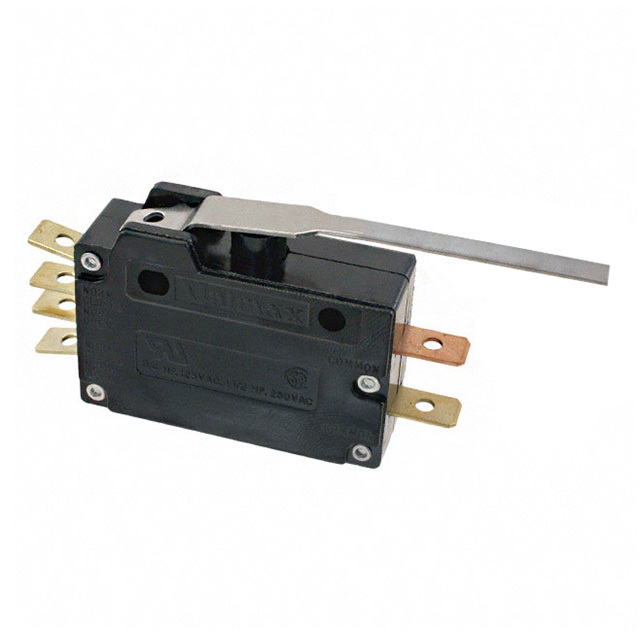

ASKHC2A04AC C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Operating Force 113gf
Release Force 14gf
Operating Position 0.718" (18.24mm)
Pretravel 0.312" (7.9mm)
Overtravel 0.312" (7.9mm)
Electrical Life 200,000 Cycles
Temperature Range - Operating -55°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1551274-ASKHC2A04AC
Ultra Librarian 3D Model Ultra Librarian ASKHC2A04AC CAD Model
