Products specifications

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 100% @ 1mA
Maximum DC Current Transfer Ratio 400% @ 1mA
Switching Turn-On and Turn-Off Time 40μs, 120μs
Rise and Fall Time 5μs, 10μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 40V
Channel Output Current 40mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)

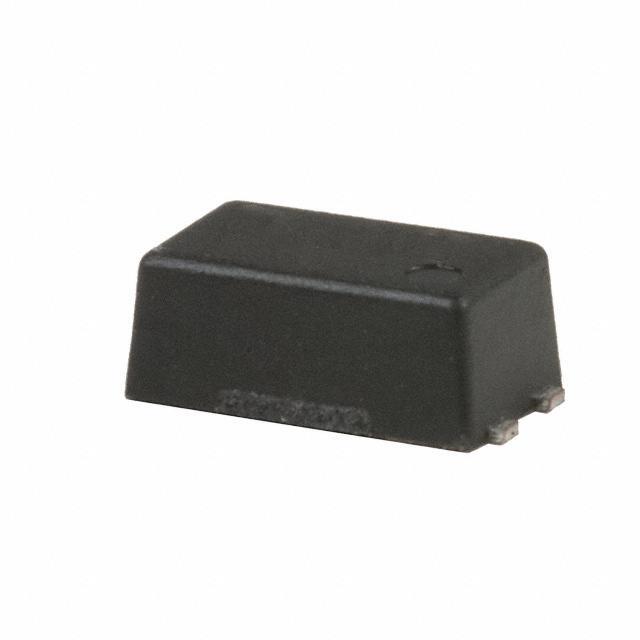

Case / Package 4-Mini-Flat
Win Source Part Number 281188-PS2911-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2911-1 CAD Model

Description

The CEL electronic component has a Win Source Part Number of 281188-PS2911-1.

  • Category: isolators
  • Status: active
  • Packaging: reel-TR
  • Mounting: SMD (SMT)
  • Output type: transistor
  • Forward voltage: 1.1V
  • Input type: DC
  • Number of channels: 1
  • Vce saturation (Max): 300mV
  • Isolation voltage: 2500Vrms
  • Minimum DC current transfer ratio: 100% @ 1mA
  • Maximum DC current transfer ratio: 400% @ 1mA
  • Switching turn-on and turn-off time: 40μs, 120μs
  • Rise and fall time: 5μs, 10μs
  • Maximum output voltage: 40V
  • Channel output current: 40mA
  • Continuous forward current-max: 50mA
  • Usage: commonly used part with high popularity
