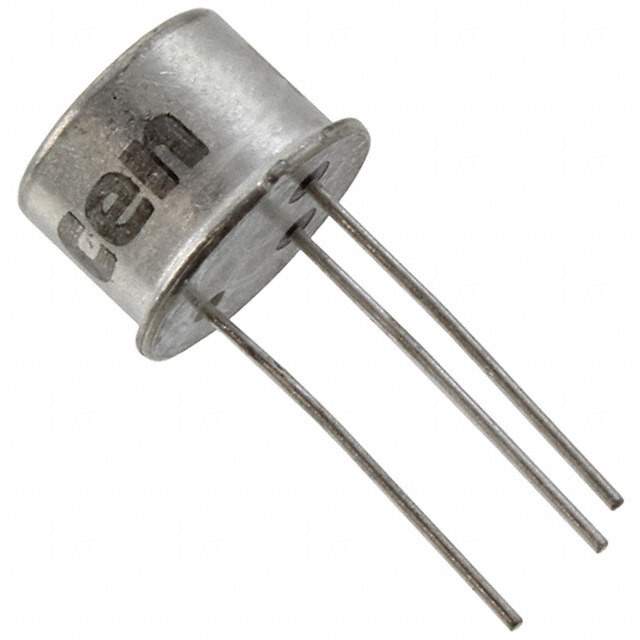

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 150mA
Voltage - Collector Emitter Breakdown (Maximum) 300V
Vce Saturation (Maximum) at Ib, Ic 1V at 3mA, 30mA
Current - Collector Cutoff (Maximum) 50nA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 35 at 30mA, 25V
Maximum Power 1mW
Frequency - Transition 160MHz
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1123915-2N5058
Manufacturer Homepage www.centralsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N5058 CAD Model

Description

The Central Semiconductor Corp 2N5058 is an NPN transistor with a TO-39-3 Metal Can package.

  • Type: NPN
  • Package: TO-39-3 Metal Can
  • Popularity: Medium
  • Counterfeit Risk: 36%
  • Supply and Demand: Limited
  • Operating Temperature: -65°C to 200°C
  • Maximum Power: 1mW
  • DC Current Gain (hFE): 35 @ 30mA, 25V
  • Vce Saturation (maximum): 1V @ 3mA, 30mA
