Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting Surface Mount
Case / Package SOD-123H
Supplier Device Package SOD-123H
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number CDBMT160
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number CDBMT160HF,641-1444-1,641-1444-2,641-1444-6
Standard Package 3,000
Win Source Part Number 1324235-CDBMT160-HF
Ultra Librarian 3D Model Ultra Librarian CDBMT160-HF CAD Model

Description

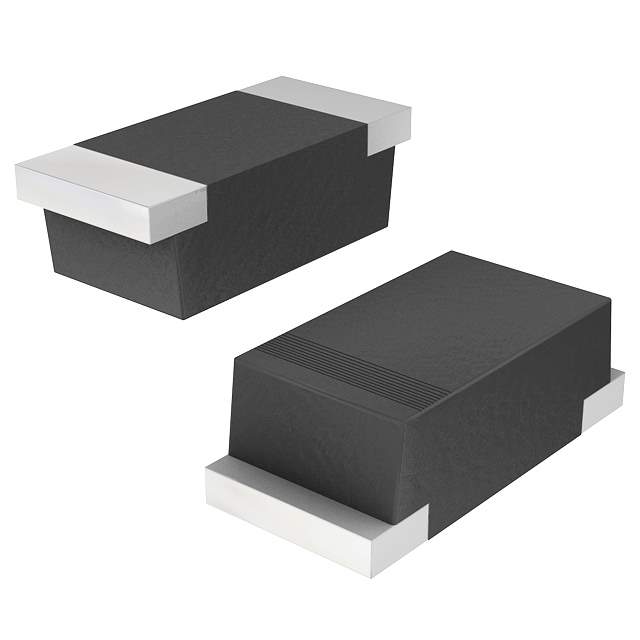

The CDBMT160-HF is a surface-mount Schottky Barrier Rectifier manufactured by Comchip Technology. It's designed for high-efficiency rectification and fast switching applications. This device comes in a compact SMA package, making it suitable for automated assembly processes. Its low forward voltage drop minimizes power loss, while its high surge current capability ensures reliable operation under transient conditions.

Applications:

  • Switching Power Supplies: Used for efficient rectification in SMPS circuits.
  • Freewheeling Diodes: Protects inductive loads by providing a path for current during switching.
  • DC-DC Converters: Enables efficient voltage conversion in a variety of applications.
  • Polarity Protection: Prevents damage from reverse polarity connections.
  • High-Frequency Inverters: Facilitates efficient power conversion in inverter circuits.

Features:

  • High Surge Current Capability: Withstands high transient currents without failure.
  • Low Forward Voltage Drop: Reduces power dissipation and improves efficiency.
  • Surface Mount Package: Enables automated assembly and reduces board space.
  • Fast Switching Speed: Minimizes switching losses in high-frequency applications.
  • RoHS Compliant: Environmentally friendly and complies with RoHS directives.
  • SMA Package: Compact and industry-standard surface mount package.

Benefits:

  • Improved Efficiency: The low forward voltage drop results in reduced power loss and higher system efficiency.
  • Reliable Operation: The high surge current capability ensures robust performance under transient conditions.
  • Compact Design: The surface mount package allows for smaller and more densely populated circuit boards.
  • Simplified Assembly: The surface mount design is compatible with automated assembly processes, reducing manufacturing costs.
  • Environmental Compliance: RoHS compliance ensures that the device is environmentally friendly and meets regulatory requirements.

Additional Details:

The CDBMT160-HF has a maximum repetitive peak reverse voltage of 60V and a maximum average forward rectified current of 1A. Its operating temperature range is typically -55°C to +150°C. The device's fast reverse recovery time enhances performance in high-frequency circuits. The SMA package dimensions are approximately 4.3mm x 2.5mm x 2.2mm. It is crucial to refer to the manufacturer's datasheet for complete and accurate specifications before using this component in any application. Proper heatsinking may be required depending on the application and operating conditions to maintain the device within its safe operating temperature range.
