Same model may have multiple batches, images only for reference.

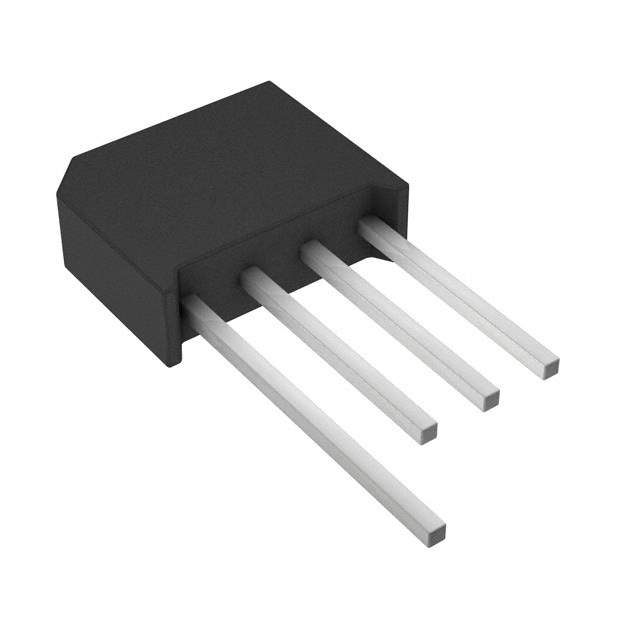

KBL408-G Real Image
Same model may have multiple batches, images only for reference.

KBL408-G

Part No KBL408-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 4A 800V KBL / Diode Rectifier Bridge Single 800V 4A 4-Pin Case KBL Box
Datasheet
KBL408-G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help
Request For Proposal

Products specifications

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 4A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, KBL
Manufacturer Package KBL
Win Source Part Number 777967-KBL408-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name KBL408
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2029
Alternative Parts
(Cross-Reference) 		KBU406;  KBU406 T0; KBU406G;  KBL08/1;

Description

The Comchip Technology 777967-KBL408-G is a single-phase diode with a voltage rating of 800V and an average rectified current of 4A. It has a forward voltage of 1.1V at 4A and a reverse leakage current of 10µA at 800V. The diode is designed for use in discrete semiconductor products and is mounted using through-hole technology. It has a temperature range for operation of -55°C to 150°C and is packaged in a 4-SIP, KBL case. The diode is available in a quantity of 500.
