Same model may have multiple batches, images only for reference.

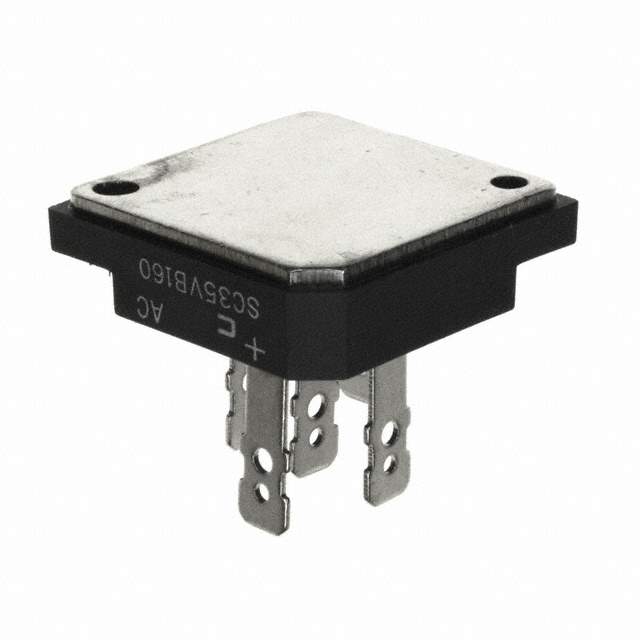

SC35VB160-G Real Image
Same model may have multiple batches, images only for reference.

SC35VB160-G

Part No SC35VB160-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 1600V 35A SCVB / Rectifier Bridge Diode Single 1.6KV 35A 5-Pin Case SCVB Box
Datasheet
SC35VB160-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tray
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1600V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 12.5A
Current - Reverse Leakage @ Vr 100μA @ 1600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 5-Square, SCVB
Manufacturer Package SCVB
Win Source Part Number 793960-SC35VB160-G
Popularity Medium
Supply and Demand Status Limited
Family Name SC35VB160
Introduction Date December 25, 2008
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SC35VB160-G CAD Model

Description

The Comchip Technology 793960-SC35VB160-G is a three phase standard technology diode type electronic component.

  • Diode Type: Standard Technology
  • Current Average Rectified: 35A
  • Current Reverse Leakage: 100μA @ 1600V
  • Family Name: SC35VB160
  • Category: Discrete Semiconductor Products
  • Voltage Peak Reverse: 1600V
  • Voltage Forward: 1.1V @ 12.5A
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Estimated EOL Date: 2027
