Same model may have multiple batches, images only for reference.

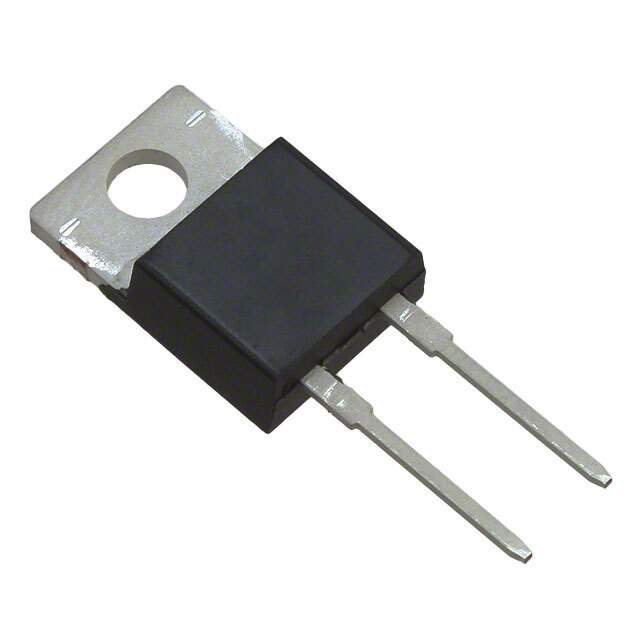

C3D08065A Real Image
Same model may have multiple batches, images only for reference.

C3D08065A

Part No C3D08065A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 8A TO220-2
Datasheet
C3D08065A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Active
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 8A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 8A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 60μA @ 650V
Capacitance @ Vr, F 441pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1027289-C3D08065A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C3D08065A CAD Model

Description

The Cree/Wolfspeed C3D08065A is a Silicon Carbide Schottky diode with a maximum DC reverse voltage (Vr) of 650V and an average rectified current (Io) of 8A (DC).

  • Maximum DC Reverse Voltage (Vr): 650V
  • Average Rectified Current (Io): 8A (DC)
  • Maximum Forward Voltage (Vf): 1.8V @ 8A
  • Reverse Recovery Time (trr): 0ns
  • Reverse Leakage Current @ Vr: 60μA @ 650V
  • Capacitance @ Vr, F: 441pF @ 0V, 1MHz
  • Package: TO-220-2
  • Status: Active
