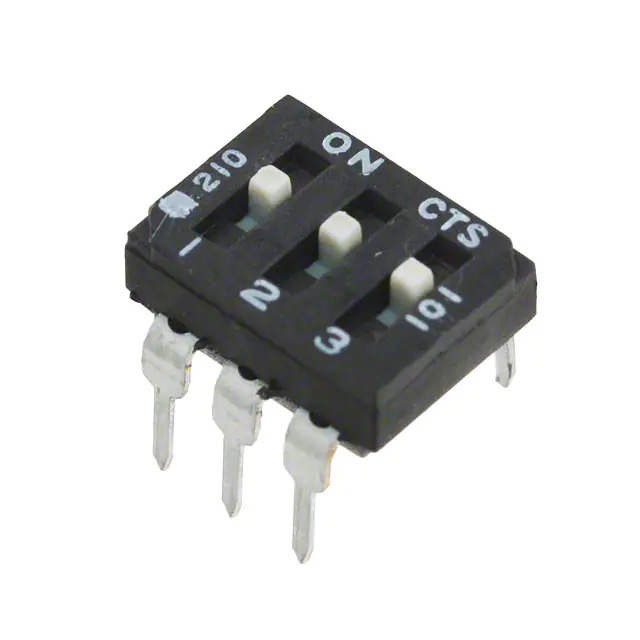

210-3MS CTS Electrocomponents
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 210
Package Tube
Product Status Active
Circuit SPST
Number of Positions 3
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.190" (4.83mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Body Material -
Length 0.358" (9.09mm)
Mechanical Life -
Electrical Life 1,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376363-210-3MS
Ultra Librarian 3D Model Ultra Librarian 210-3MS CAD Model

Description

The 1376363-210-3MS is a DIP switch from CTS Electrocomponents.

  • Mounting Type: Through Hole
  • Series: 210
  • Circuit: SPST
  • Current Rating: 100mA
  • Voltage Rating: 20VDC
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Slide
  • Termination Style: PC Pin
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Sealed: Epoxy
  • Height Above Board: 0.190" (4.83mm)
  • Length: 0.358" (9.09mm)
