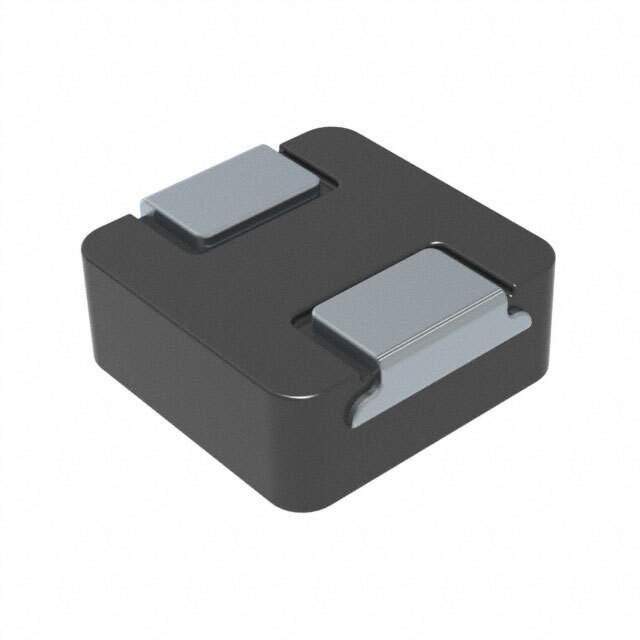

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Delta Electronics/Cyntec
Packaging Reel - TR
Material - Core Metal
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 5.4A
Shielding Unshielded
DC Resistance (DCR) 93.5mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.303" L x 0.283" W (7.70mm x 7.20mm)
Height - Seated (Max) 0.213" (5.40mm)
Base Product Number VCHA075D
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number VCHA075D-220MS6-ND,2037-VCHA075D-220MS6DKR,2037-VCHA075D-220MS6CT,2037-VCHA075D-220MS6TR
Standard Package 500
Win Source Part Number 1328861-VCHA075D-220MS6
Ultra Librarian 3D Model Ultra Librarian VCHA075D-220MS6 CAD Model

Description

The Delta Electronics/Cyntec VCHA075D-220MS6 is a fixed inductor that is unshielded and has an inductance of 22 µH with a tolerance of ±20%.

  • Shielding: Unshielded
  • Inductance: 22 µH
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Mounting Style: Surface Mount
  • DC Resistance (DCR): 93.5mOhm Max
  • Current Rating: 3.3A
  • Dimensions: 0.303" L x 0.283" W (7.70mm x 7.20mm)
  • Height: 0.213" (5.40mm)
  • Temperature Range: -55°C to 165°C
  • Manufacturer: Delta Electronics/Cyntec
