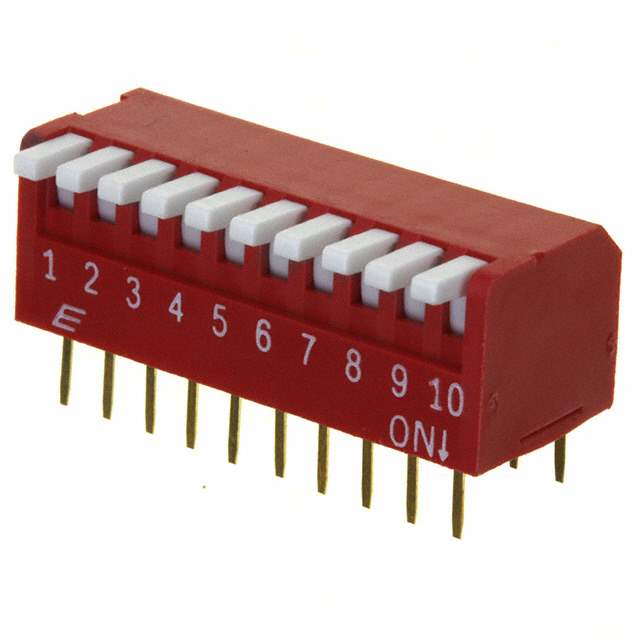

KAP1110E Real Image
Same model may have multiple batches, images only for reference.

KAP1110E

Part No KAP1110E
Manufacturer E-Switch
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 10
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 1.061" (26.95mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 106062-KAP1110E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KAP1110E CAD Model

Description

The E-Switch electronic component with the Win Source Part Number 106062-KAP1110E is a through-hole, right-angle mounting switch with a body material of Polybutylene Terephthalate (PBT), Glass Filled.

  • Circuit: It has a circuit of SPST and an actuator type of Piano.
  • Voltage Rating: The switch has a voltage rating of 24VDC and a current rating of 25mA.
  • Electrical Life: It has an electrical life of 2,000 cycles and a mechanical life of 2,000 cycles.
  • Features: The switch is washable and has a height above board of 0.402" (10.20mm).
  • Length: The length of the switch is 1.061" (26.95mm).
  • Supply and Demand: The supply and demand status of this component is balanced.
  • Temperature Range: The temperature range for operating this component is -40°C to 85°C.
