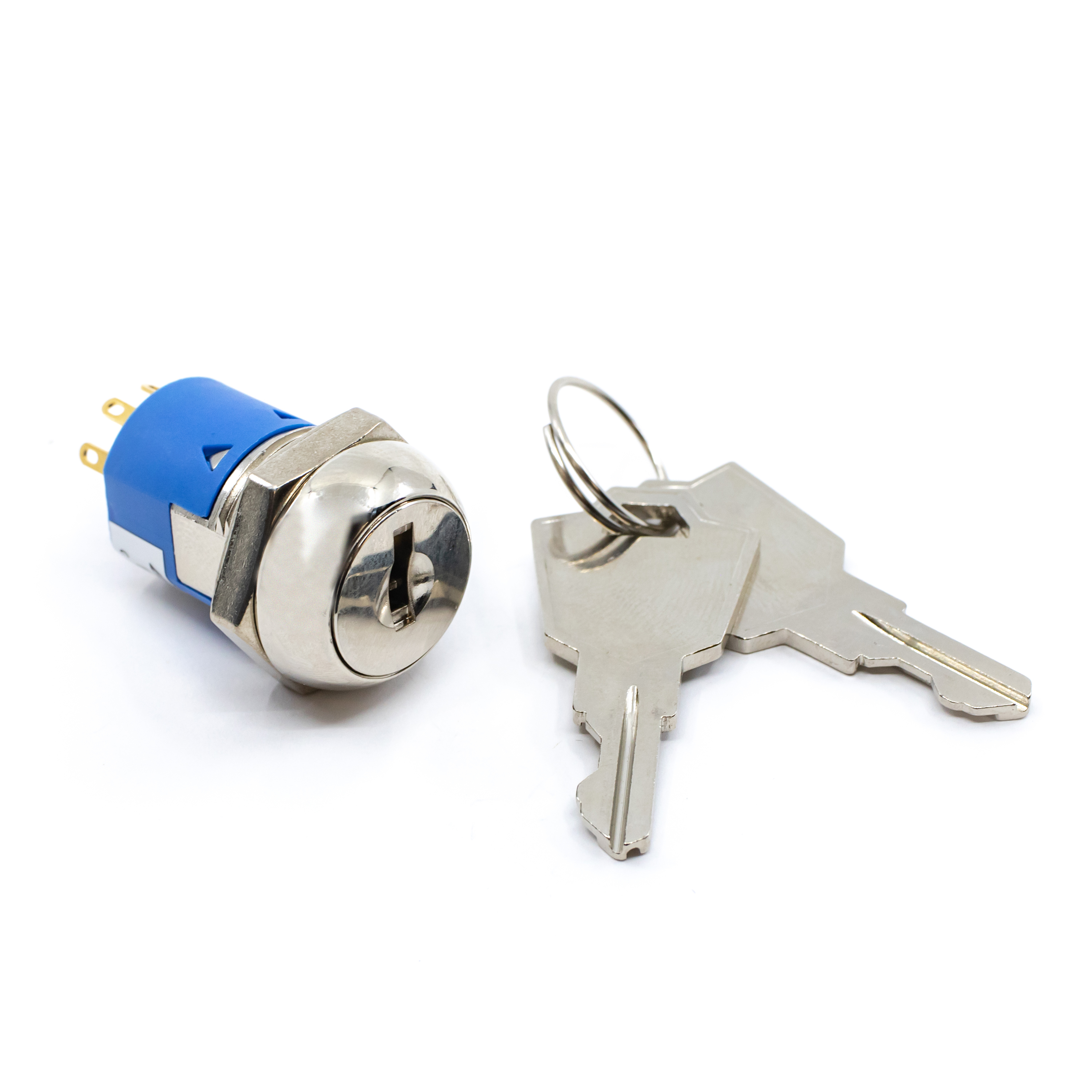

Products specifications

Circuit SP3T
Number of Positions 3
Switch Function On-On-Mom
Contact Timing Not Specified
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flat Key
Key Removable Positions 1 and 3
Angle of Throw 45°, 90°
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 19.00mm Dia
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1555081-KO129B606
Ultra Librarian 3D Model Ultra Librarian KO129B606 CAD Model
