Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Voltage - Supply (Minimum) 5V
Voltage - Supply (Maximum) 21V
Voltage - Output 8V ~ 60V
Current - Output / Channel 2.3A (Switch)
Frequency 600kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD

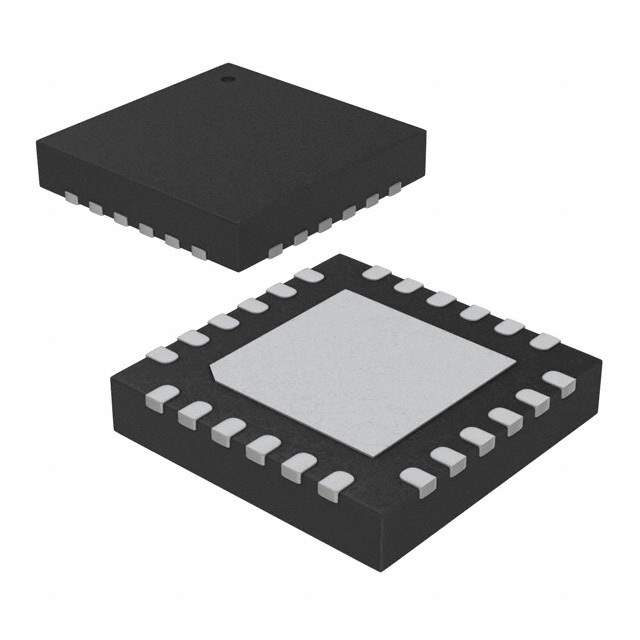

Manufacturer Package 24-UFQFN Exposed Pad
Supplier Device Package 24-QFN-EP (4x4)
Family Part Number MC34845
Manufacturer Pack Quantity 490
MSL Level 3 (168 Hours)
Win Source Part Number 754745-MC34845EP
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC34845EP CAD Model

Description

Product Overview: NXP MC34845EP

The NXP MC34845EP is a state-of-the-art LED driver designed to offer exceptional performance and reliability for a wide range of lighting applications. This advanced driver IC is engineered to provide high-efficiency solutions for backlighting systems used in medium to large display panels, such as those found in TVs, computer monitors, and automotive displays.

Key Features

  • High Precision: The MC34845EP boasts a high level of brightness accuracy, which allows for uniform illumination and enhances the visual experience of the end-user.
  • Multiple Channels: With its multi-channel capability, this LED driver can control several strings of LEDs independently, ensuring flexible design options and optimized performance.
  • Dimming Control: It includes sophisticated dimming features, such as pulse-width modulation (PWM) dimming, which allows for smooth and flicker-free adjustments to brightness levels.
  • Integrated Protection: The device comes with built-in protection mechanisms, including over-voltage, over-temperature, and LED open/short circuit protection, safeguarding the system against potential damage.
  • Energy Efficient: Designed with power efficiency in mind, the MC34845EP helps reduce energy consumption, which is beneficial for both the environment and operational costs.

Applications

The versatile nature of the NXP MC34845EP LED driver makes it suitable for a variety of applications, including:

  • LED backlights for LCD TVs
  • Monitors and laptop screens
  • Automotive interior and dashboard lighting
  • General-purpose industrial and commercial lighting systems

Technical Specifications

Some of the technical specifications that define the MC34845EP include:

  • Supply Voltage Range: 4.5V to 40V
  • Switching Frequency: Up to 1MHz
  • Number of Output Channels: 10
  • Maximum Output Current per Channel: 85mA

The NXP MC34845EP LED driver is an excellent choice for manufacturers and designers looking for a reliable, high-performance solution to drive LED backlighting systems. Its advanced features and capabilities ensure that it can meet the demands of a wide range of lighting applications.
