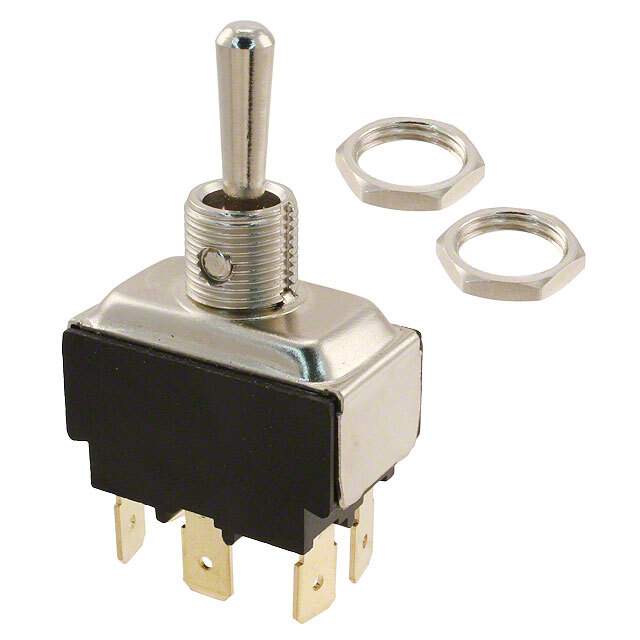

ST246D00 Real Image
Same model may have multiple batches, images only for reference.

ST246D00

Part No ST246D00
Manufacturer E-Switch
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 20A 125V  /  Toggle Switch DPDT Panel Mount
Datasheet
ST246D00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr E-Switch
Series ST2, LAMB
Package Bulk
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 20A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.00mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Brass, Nickel Plated
Electrical Life 6,000 Cycles
Base Product Number ST246
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names EG4821
Standard Package 500
Win Source Part Number 1096464-ST246D00
Ultra Librarian 3D Model Ultra Librarian ST246D00 CAD Model

Description

The E-Switch ST246D00 is a DPDT toggle switch that has a voltage rating of 125V AC and a current rating of 20A (AC).

  • Manufacturer: E-Switch
  • Switch Type: DPDT Toggle Switch
  • Voltage Rating: 125V AC
  • Current Rating: 20A (AC)
  • Panel Cutout Dimension: 12.00mm dia
  • Standard Package: 500 units
  • Actuator Type: standard round
  • Actuator Length: 17.50mm
  • Mechanical Life: 6,000 cycles
  • Illumination: non-illuminated
  • Operating Temperature Range: -20°C to 85°C
  • Mounting Type: panel mount
  • ECCN: EAR99
  • REACH: unaffected
  • MSL: 1 (unlimited)
