Products specifications

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tray
Status Obsolete(EOL)
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 6.5V
Maximum Input Voltage 13.2V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 5.5V
Output Current 40A
Frequency - Switching 250kHz to 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LGA (7.7x7.7)
Win Source Part Number 068903-IP2005APBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IP2005APBF CAD Model

Description

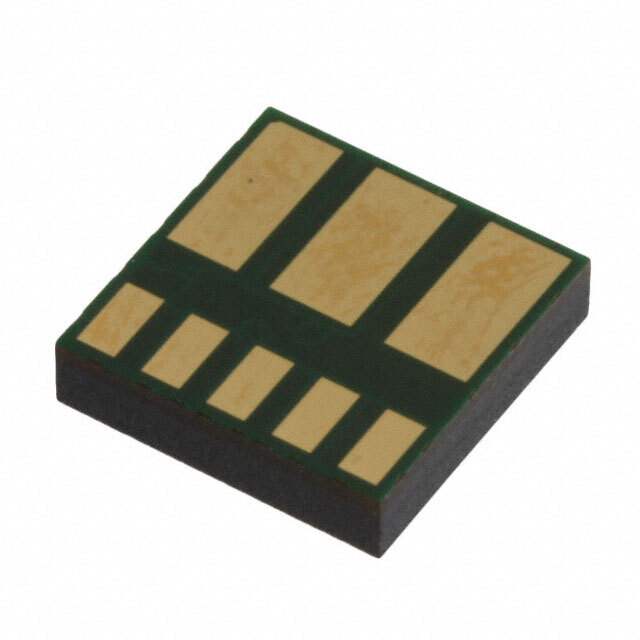

The Infineon Technologies IP2005APBF is a step-down DC-DC converter with a synchronous rectifier and an adjustable output type.

  • Rectifier Type: Synchronous rectifier
  • Output Type: Adjustable
  • Maximum Input Voltage: 13.2V
  • Nominal Output Voltage: 0.8V
  • Maximum Output Voltage: 5.5V
  • Switching Frequency: 250kHz to 1.5MHz
  • Maximum Output Current: 40A
  • Package: LGA (7.7x7.7)
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balance
