Same model may have multiple batches, images only for reference.

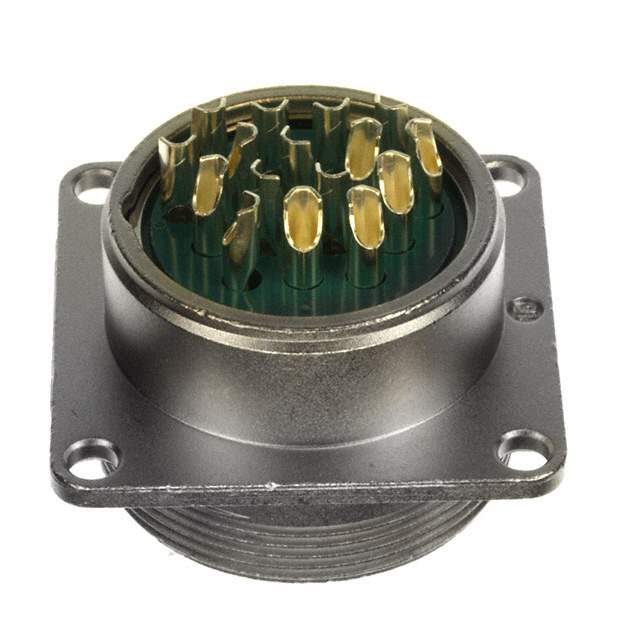

SRCN2A25-16S Real Image
Same model may have multiple batches, images only for reference.

SRCN2A25-16S

Part No SRCN2A25-16S
Manufacturer JAE Electronics
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 16P SOLDER CUP / 16 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr JAE Electronics
Series SRCN
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 16
Shell Size - Insert 25-16
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Voltage Rating 250VAC, 350VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Alloy
Insert Material Plastic
Applications Communication Systems, Telecommunications, Test Equipment & Measurement
Base Product Number SRCN2A25
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1338029-SRCN2A25-16S
Ultra Librarian 3D Model Ultra Librarian SRCN2A25-16S CAD Model

Description

The JAE Electronics 1338029-SRCN2A25-16S is a circular connector assembly with a receptacle and female sockets connector type.

  • Positions: 16
  • Fastening Type: Threaded
  • Shell Size - Insert: 25-16
  • Shell Material: Aluminum Alloy
  • Insert Material: Plastic
  • Contact Material: Copper Alloy
  • Current Rating: 10A
  • RoHS Compliant: Yes
  • Temperature Range: -25°C to 85°C

It is suitable for communication systems, telecommunications, and test equipment & measurement applications.
