Same model may have multiple batches, images only for reference.

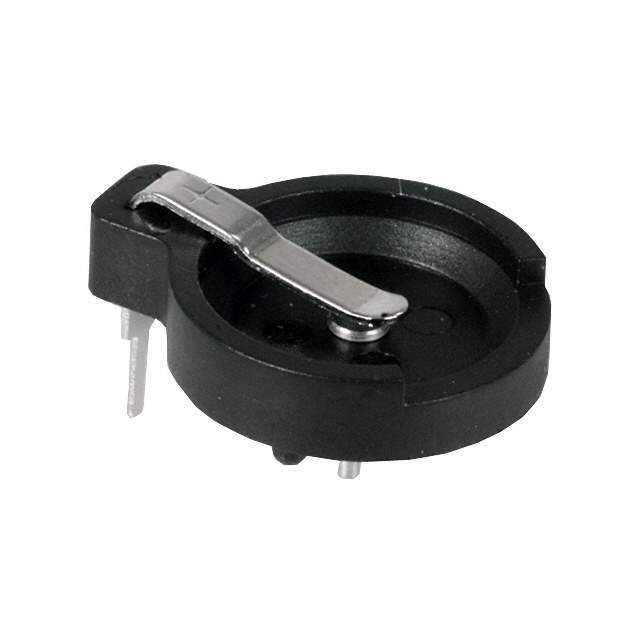

500 Real Image
Same model may have multiple batches, images only for reference.

500

Part No 500
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT HLDR COIN 12MM 1 CEL PC PIN
Datasheet
500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Holder
Style Holder (Open)
Battery Cell Size Coin, 12.0mm
Number of Cells 1
Battery Series 1216, 1220, 1225
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.180" (4.57mm)
Temperature Range - Operating -50°C ~ 145°C
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 546220-500
Ultra Librarian 3D Model Ultra Librarian 500 CAD Model

Description

The Battery Holder (Open) is a versatile electronic component designed for battery applications. It is part of the Battery Products - Battery Holders, Clips, Contacts category and is manufactured by Keystone Electronics.

  • Category: Battery Products - Battery Holders, Clips, Contacts
  • Battery Size: 12.0mm Coin Cell
  • Termination Style: PC Pin
  • Mounting: Through-Hole
  • Height Above Board: 0.180"
  • Package: Bulk (100 pieces)
  • Temperature Range: -50°C to 145°C
