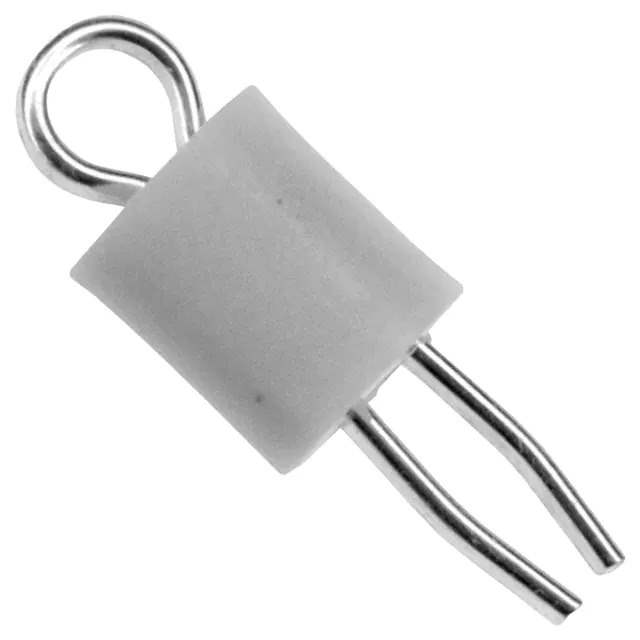

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Series THM
Package Bulk
Product Status Active
Type PC Test Point, Miniature
Mounting Type Through Hole
Color White
Hole Diameter 0.040" (1.02mm)
Size / Dimension 0.100" Dia x 0.180" L (2.54mm x 4.57mm)
Plating Silver
Material - Insulation Nylon 46, UL 94V-0
Material - Body Phosphor Bronze
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 546224-5002
Ultra Librarian 3D Model Ultra Librarian 5002 CAD Model

Description

The 546224-5002 test point is a miniature PC test point that provides a reliable and convenient solution for testing and measuring electrical signals.

  • Type: Test Point
  • Material: Phosphor Bronze
  • Plating: Silver
  • Hole Diameter: 0.040" (1.02mm)
  • Size/Dimension: 0.100" Dia x 0.180" L (2.54mm x 4.57mm)
  • Mounting Type: Through Hole
  • Series: THM
  • Manufacturer: Keystone Electronics
  • Status: Active
  • Standard Package: 100 pieces
