Products specifications Report Issue?

Win Source Part Number WS1197015-5010
Manufacturer Keystone Electronics
Category Test and Measurement -Test Points
Series THM
Package Bulk
Product Status Active

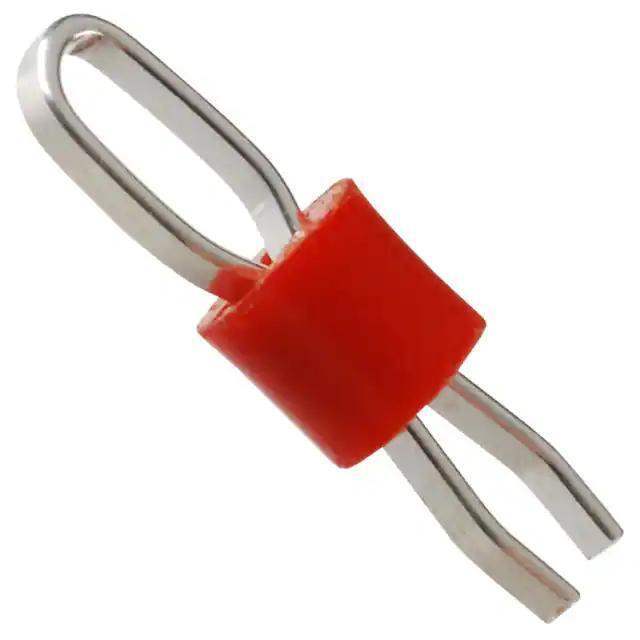

Type PC Test Point, Multipurpose
Mounting Type Through Hole
Color Red
Hole Diameter 0.063" (1.60mm)
Size / Dimension 0.125" Dia x 0.320" L (3.18mm x 8.13mm)
Ultra Librarian 3D Model Ultra Librarian 5010 CAD Model

Description

The Keystone Electronics THM Series PC Test Point is a versatile component used in test and measurement applications. Manufactured by Keystone Electronics, a reputable company in the industry, this PC test point offers reliable performance and durability. It is designed for through-hole mounting, ensuring easy installation on circuit boards. The test point has a size of 0.125 inches in diameter and 0.320 inches in length (3.18mm x 8.13mm). It features a red color for easy identification. The product is available in bulk packaging, making it convenient for large-scale production or stocking. The THM Series PC Test Point is an active product in the market, ready to meet your test and measurement needs.
