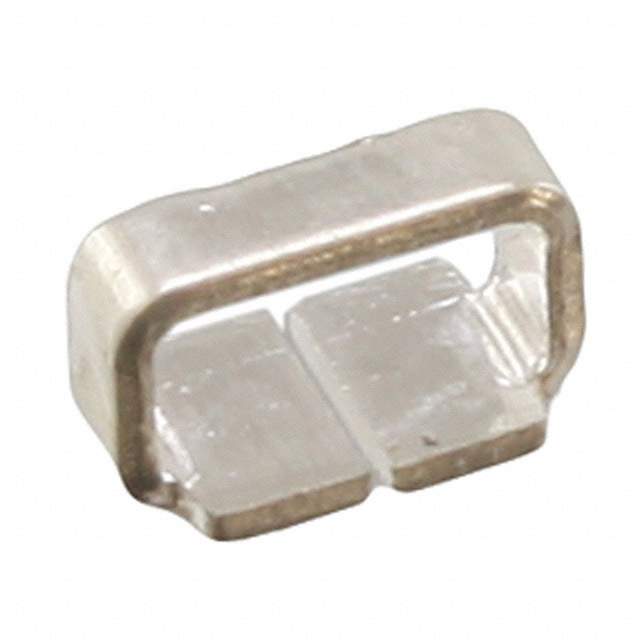

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr Keystone Electronics
Package Tape & Reel
Product Status Active
Type PC Test Point, Miniature
Mounting Type Surface Mount
Size / Dimension 0.150" L x 0.080" W (3.81mm x 2.03mm)
Height 0.090" (2.29mm)
Plating Silver
Material - Insulation No Insulation
Material - Body Phosphor Bronze
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856260-5019
Ultra Librarian 3D Model Ultra Librarian 5019 CAD Model

Description

The 856260-5019 is a miniature PC test point used in test and measurement applications from Keystone Electronics.

  • Size: 0.150" L x 0.080" W (3.81mm x 2.03mm)
  • Height: 0.090" (2.29mm)
  • Material: Phosphor bronze
  • Plating: Silver
  • Mounting: Surface mount
  • Packaging: Tape and reel
  • Pieces: 1,000
  • Product Status: Active
