Same model may have multiple batches, images only for reference.

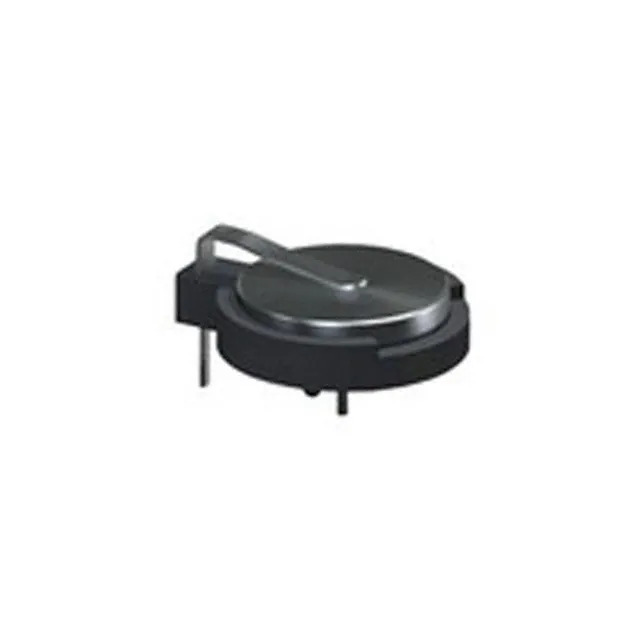

502-3 Keystone Electronics
Same model may have multiple batches, images only for reference.

502-3

Part No 502-3
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT HLDR COIN 16MM 1 CEL PC PIN
Datasheet
502-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Holder
Style Holder (Open)
Battery Cell Size Coin, 16.0mm
Number of Cells 1
Battery Series 1612, 1616, 1620, 1632
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.212" (5.38mm)
Temperature Range - Operating -50°C ~ 145°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365975-502-3
Ultra Librarian 3D Model Ultra Librarian 502-3 CAD Model

Description

The Keystone Electronics Battery Holders, Clips, Contacts are essential components for securely holding and connecting coin cell batteries in various devices.

  • Coin Cell Size: 16.0mm
  • Manufacturer: Keystone Electronics
  • Battery Quantity: 1
  • Mounting Type: PCB, through-hole
  • Temperature Range: -50°C to 145°C
  • Termination Style: PC pin
  • Height Above Board: 0.212 inches (5.38mm)
  • Product Status: Active
  • REACH: Not affected
