Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Reel package
Amplifier Type General
Number of Circuits 1
Output Type Rail-to-Rail
SR - Slew Rate 0.0013 V/μs
GBP - Gain Bandwidth Product 3kHz
Current - Input Bias 40pA
Voltage - Input Offset 300μV
Operating Supply Current 1.25μA
Output Current per Channel 9mA
Dual Supply Voltage (±) 1.6 V ~ 16 V, ±0.8 V ~ 8 V
Operating Temperature Range 0°C ~ 70°C
Mounting SMD

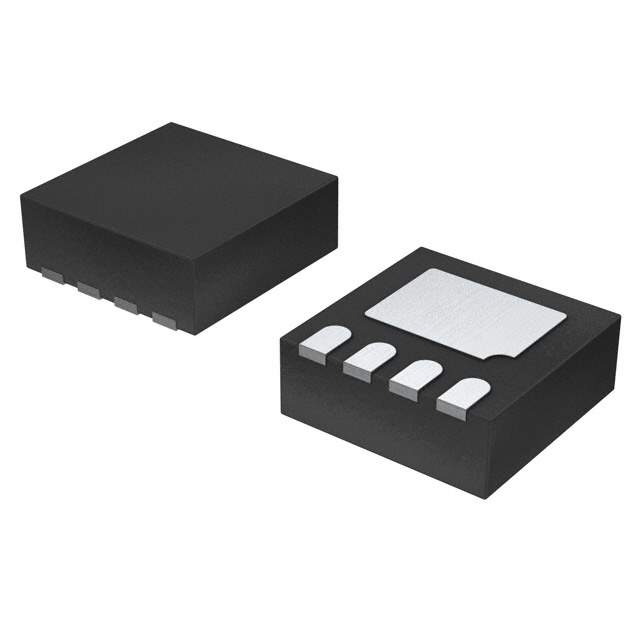

Package 4-WFSFN Exposed Pad
Manufacturer Package 4-DFN-EP (2x2)
Win Source Part Number 781486-LT6003CDC#TRMPBF
Popularity Medium
Supply and Demand Status Balance
Family Name LT6003
Introduction Date September 19, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT6003CDC#TRMPBF CAD Model

Description

Introducing the LT6003CDC#TRMPBF Precision Op Amp

The LT6003CDC#TRMPBF is a state-of-the-art operational amplifier (op amp) from Linear Technology, designed for precision applications that require low power consumption without compromising on performance. This op amp is ideal for battery-powered systems, portable devices, and other applications where energy efficiency is paramount.

Key Features

  • Low Power Operation: The LT6003CDC#TRMPBF consumes an incredibly low quiescent current of just 1µA, which is beneficial for extending battery life in portable applications.
  • High Precision: With an input offset voltage of only 500µV and a guaranteed max input offset voltage of 1mV, this op amp allows for high-accuracy signal amplification, making it suitable for precision instruments.
  • Wide Supply Voltage Range: It operates over a wide supply voltage range from 1.6V to 16V, providing flexibility for various circuit designs and ensuring compatibility with both single and dual supply operations.
  • Low Input Bias Current: The input bias current is as low as 20pA, which is ideal for applications that require a high input impedance.
  • Extended Temperature Range: This op amp is designed to operate over a temperature range of -40°C to 125°C, ensuring reliability in diverse environmental conditions.

Applications

The LT6003CDC#TRMPBF is versatile and can be used in a wide array of applications, including:

  • Portable medical devices
  • Gas detectors
  • Temperature measurements
  • Low-power filters
  • Battery monitoring
  • Energy harvesting systems

Equipped with a rail-to-rail output, the LT6003CDC#TRMPBF facilitates a wide dynamic range, which is particularly useful in single-supply operations and when interfacing with analog-to-digital converters (ADCs).

Linear Technology's commitment to quality ensures that the LT6003CDC#TRMPBF op amp is a reliable component for precision and low-power applications. Its compact 6-lead DFN package makes it an excellent choice for space-constrained applications while providing robust performance that designers and engineers can trust.
