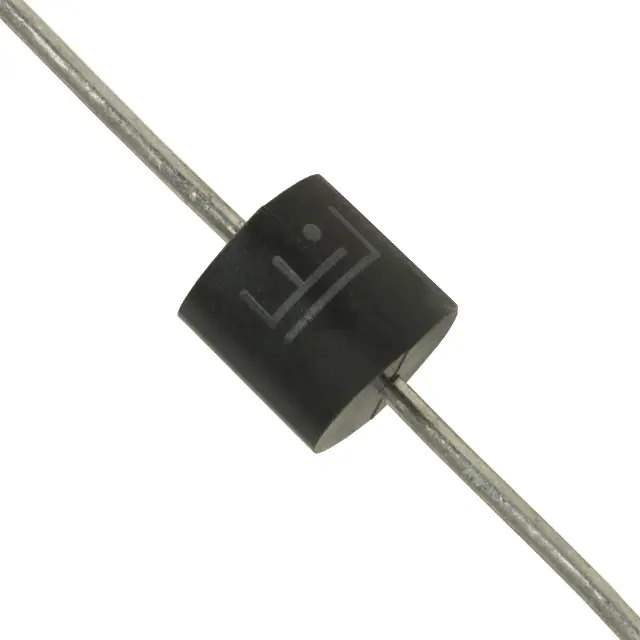

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 5KP
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 78V
Voltage - Breakdown (Min) 86.7V
Voltage - Clamping (Max) @ Ipp 126V
Current - Peak Pulse (10/1000µs) 40.5A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Base Product Number 5KP7
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 856768-5KP78CA
Ultra Librarian 3D Model Ultra Librarian 5KP78CA CAD Model

Description

The 856768-5KP78CA is a Zener diode TVS diode in the 5KP series by Littelfuse Inc.

  • Series: 5KP
  • Application: general-purpose applications requiring transient voltage suppression
  • Package: tape & reel or cut tape
  • Reverse Standoff Voltage: 78V
  • Breakdown Voltage: 86.7V
  • Clamping Voltage: 126V @ a peak pulse power of 5kW
  • Channel: bidirectional
  • Peak Pulse Current: 40.5A
  • Mounting: suitable for through-hole mounting
  • Operating Temperature Range: -55°C to 175°C
  • Product Status: active
  • REACH: complies with REACH regulations
  • Function: requiring high-power transient voltage suppression
