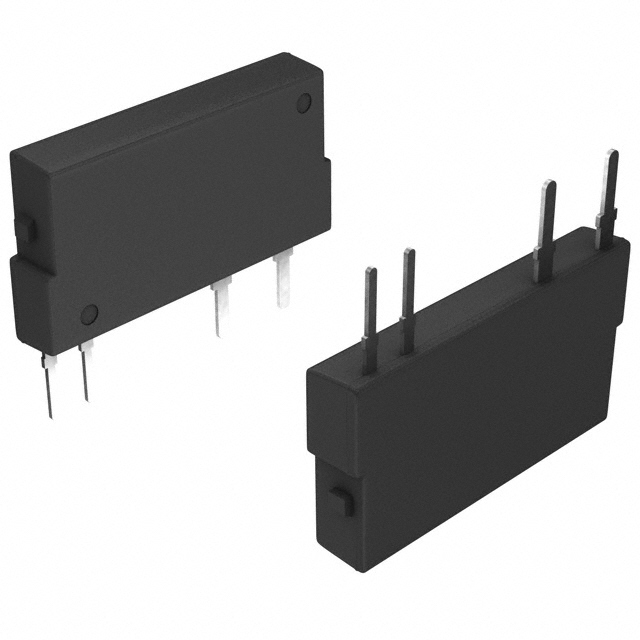

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RelaysSolid State Relays (SSR)
Mfr Littelfuse Inc.
Series CPC
Packaging Tube
Part Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 20 V ~ 240 V
Load Current 3 A
Termination Style PC Pin
Operating Temperature -40°C ~ 85°C
Package / Case 8-SIP, 4 Leads
Supplier Device Package 4-SIP
Approval Agency CSA, UL
Base Product Number CPC196
Ultra Librarian 3D Model Ultra Librarian CPC1966Y CAD Model
