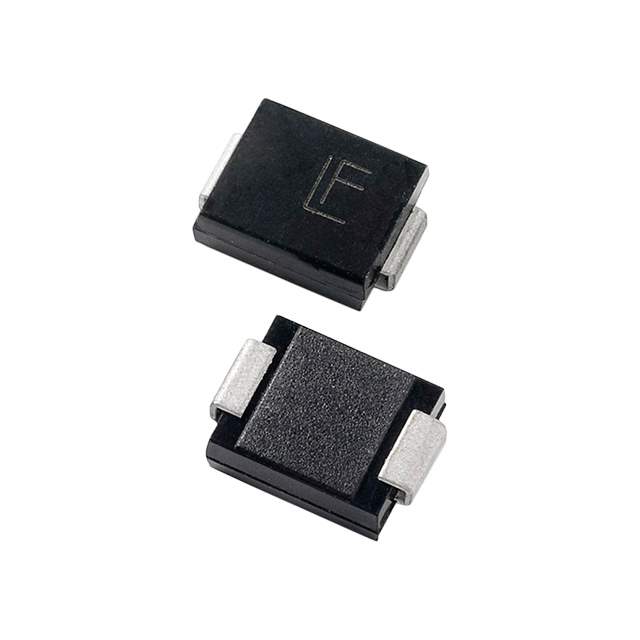

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 36.8V
Minimum Breakdown Voltage 40.9V
Max Clamping Voltage 59.3V
Peak Pulse Current(Ippm) 25.6A
Power Dissipation - Pd 1500W (1.5kW)
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 1113876-TPSMC43A
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian TPSMC43A CAD Model

Description

Littelfuse Inc. Zener Diode is a type of semiconductor device that is designed to allow current to flow in the forward direction like a normal diode but also in the reverse direction when the voltage reaches the breakdown voltage.

  • Stand-off Voltage: 36.8V
  • Minimum Breakdown Voltage: 40.9V
  • Max Clamping Voltage: 59.3V
  • Peak Pulse Current: 25.6A
  • Power Dissipation: 1500W (1.5kW)
  • Operating Temperature: -55°C to 150°C
  • Package: DO-214AB (SMCJ)
