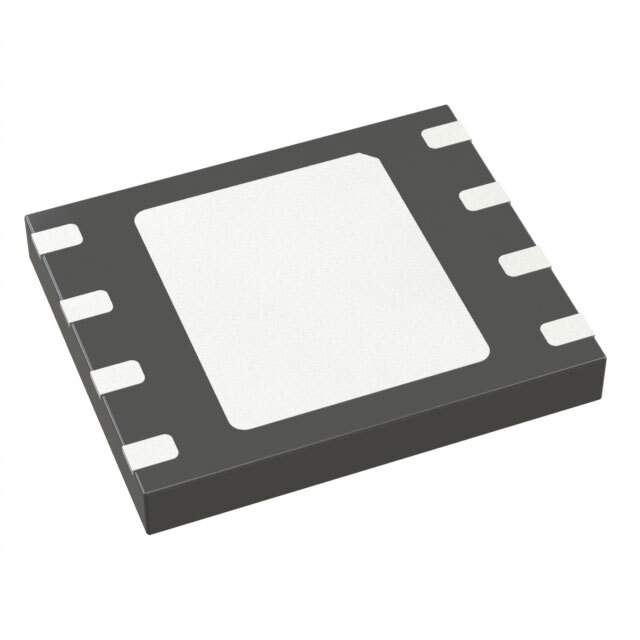

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Macronix
Series MXSMIO™
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 80 MHz
Write Cycle Time - Word, Page 100µs, 4ms
Voltage - Supply 2.3V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (6x5)
Base Product Number MX25V1635
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Other Names 6737N-087Y12IYNW99,6737N-087Y12IYN999,1092-1191,6754N-087Y12IYD999
Standard Package 570
Win Source Part Number 959150-MX25V1635FZNI
Ultra Librarian 3D Model Ultra Librarian MX25V1635FZNI CAD Model

Description

The Macronix MX25V1635FZNI is a flash memory IC that uses NOR technology.

  • Technology: NOR
  • Clock Frequency: 80 MHz
  • Write Cycle Time: 100μs, 4ms
  • Memory Interface: SPI with Quad I/O
  • Mounting: Surface-Mounted
  • Memory Size: 16Mb (2M x 8)
  • Voltage Supply: 2.3V to 3.6V
  • Package: 8-WDFN Exposed Pad
  • Series: MXSMIO™
  • Manufacturer: Macronix
