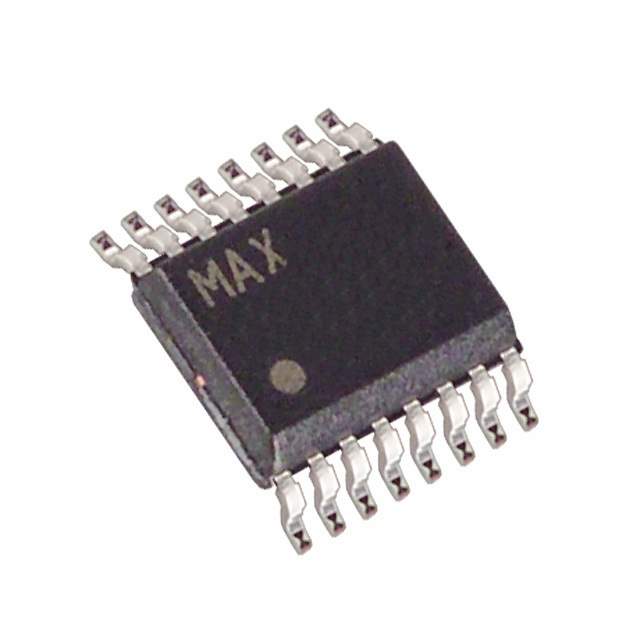

The MAX5153AEEE from Maxim Integrated is a high-performance, dual-channel, 12-bit digital-to-analog converter (DAC) designed to deliver precision voltage outputs in a compact, 16-pin QSOP package. This device is ideal for applications requiring accurate and stable analog output signals, such as process control, automated test equipment, and digital gain and offset adjustment.

Key Features

• High Resolution: 12-bit resolution ensures fine control over the output voltage, providing the precision needed for demanding applications.
• Dual DAC Channels: Two independent DAC channels allow for simultaneous output of two different voltage levels, increasing the versatility of the device.
• Serial Interface: The device includes a 3-wire SPI/QSPI/MICROWIRE-compatible serial interface, facilitating easy communication with microcontrollers and digital systems.
• Low Power Consumption: Designed for power-sensitive applications, the MAX5153AEEE operates with a low supply current, making it suitable for battery-operated devices.
• Flexible Reference Input: An external reference input provides flexibility in setting the full-scale output voltage, accommodating a wide range of application requirements.

Performance Specifications

• Output Voltage Range: The output can swing from 0V to VREF.
• Settling Time: Fast settling time ensures quick response to input commands, improving system performance.
• Power-On Reset: The device includes a power-on reset circuit that ensures the DAC outputs power up to zero volts and remain there until a valid write to the device takes place.

Applications

The MAX5153AEEE is suitable for a broad range of applications, including:

• Industrial Process Control
• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Portable Instrumentation
• Digital Offset and Gain Adjustment

With its high resolution, dual-channel output, and low power consumption, the MAX5153AEEE is a robust solution for systems requiring precise analog signal generation. Its small form factor and ease of integration make it an excellent choice for both new designs and upgrades to existing systems.
