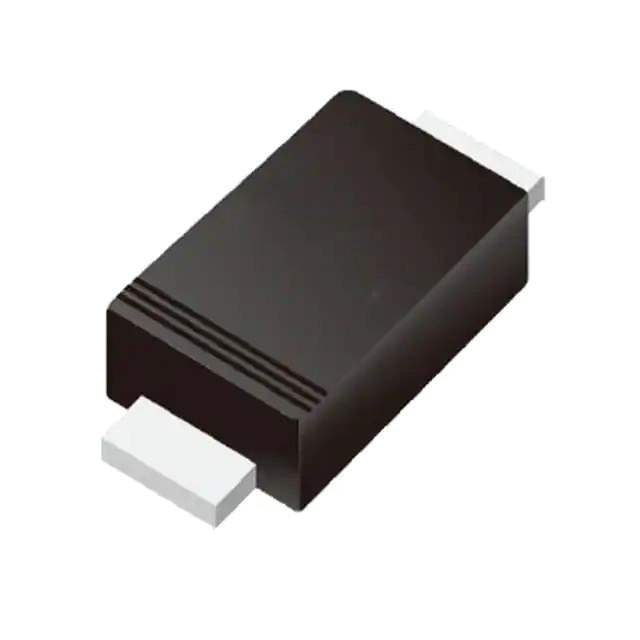

DSK24 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 220pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587183-DSK24
Ultra Librarian 3D Model Ultra Librarian DSK24 CAD Model

Description

The 587183-DSK24 is a fast recovery Schottky diode with a maximum reverse voltage of 40 V and an average rectified current of 2A.

  • Maximum Reverse Voltage: 40 V
  • Average Rectified Current: 2A
  • Forward Voltage: 550 mV @ 2 A
  • Reverse Leakage Current: 500 µA @ 40 V
  • Package: SOD-123FL
  • Packaging: Tape and reel
  • Standard Package Size: 6,000 pcs
  • Recovery Speed: less than 500ns
  • Capacitance: 220pF @ 4V and 1MHz
  • Temperature Range: -55°C to 125°C
  • Mounting: Surface mount
