Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V (Max)
Voltage - Breakdown (Min) 40V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 664658-SD36C
Ultra Librarian 3D Model Ultra Librarian SD36C CAD Model

Description

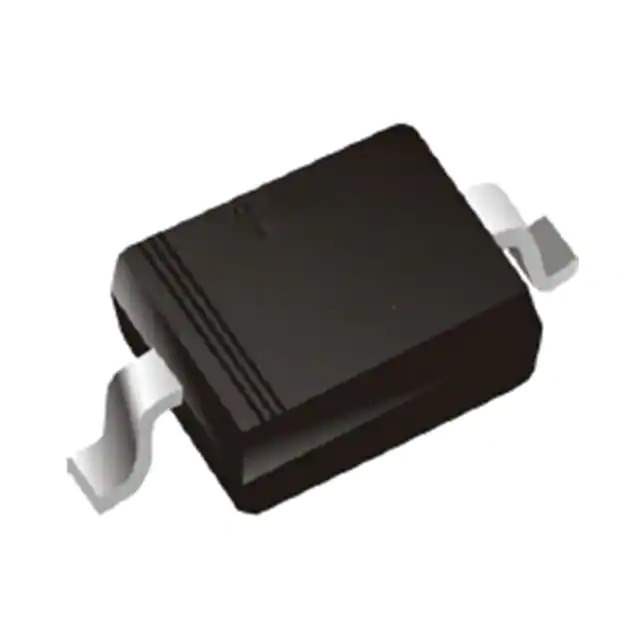

The SD36C is a Zener diode designed for general-purpose voltage regulation and transient voltage suppression.

  • Series: SOD-323
  • Package: tape & reel
  • Standard Package: 6,000 pcs
  • Type: bidirectional diode
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Peak Pulse Power: 350W
  • Application: power line protection
  • Capacitance: 60pF @ 1MHz
  • Peak Pulse Current: 1A @ 8/20μs
  • Mounting: surface mountable
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: MDD
  • Product Status: active
