Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMA
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount

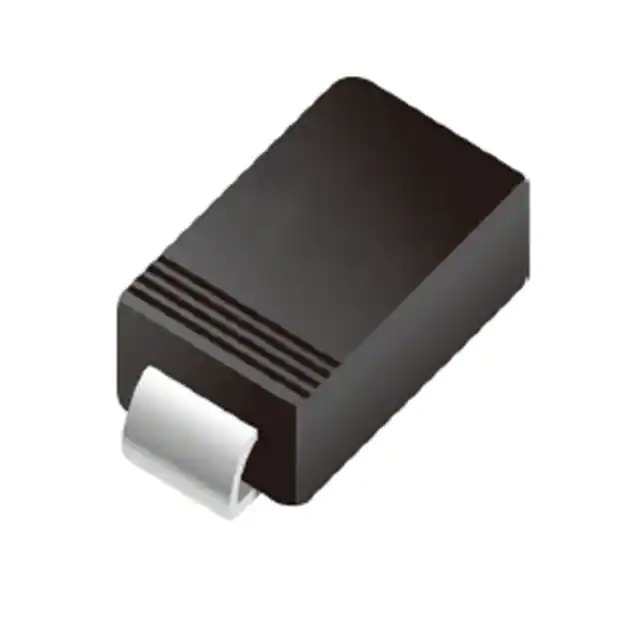

Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1367021-SS1200
Ultra Librarian 3D Model Ultra Librarian SS1200 CAD Model

Description

The MDD 1367021-SS1200 is a Schottky diode from the SMA series manufactured by MDD. It is designed for use in rectifier applications in electronic devices. The diode has a maximum DC reverse voltage of 200V and an average rectified current of 1A. With a fast recovery time of less than 500ns and a reverse leakage current of 100µA @ 200V, this diode offers efficient and reliable performance. It has a capacitance of 80pF @ a voltage of 4V and a frequency of 1MHz. The 1367021-SS1200 operates in a wide temperature range of -55°C to 150°C, making it suitable for various applications. It comes in a surface mount package, DO-214AC, SMA. The diode is REACH unaffected and has an ECCN classification of EAR99.

  • Type: Schottky Diode
  • Series: SMA
  • Application: Rectifier
  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 1A
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current: 100µA @ 200V
  • Capacitance: 80pF @ 4V, 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Surface Mount
  • Package: DO-214AC, SMA
  • REACH: Unaffected
  • ECCN: EAR99
